TRIPODS, ADAPTER PLATES, WEIGHTS, KNOBS, LEVERS, ETC.

Losmandy's complete line of accessories allows you to do even more with your telescope. Tripods, piers, trays and adapter plates give you ultimate flexibility. Losmandy's tripods, adapters, motor covers and all accessories in the Losmandy line, are machined for lightness and rigidity from aluminum stock, then black anodized for a tough, corrosion free surface.

PART NO. PRICE DESCRIPTION

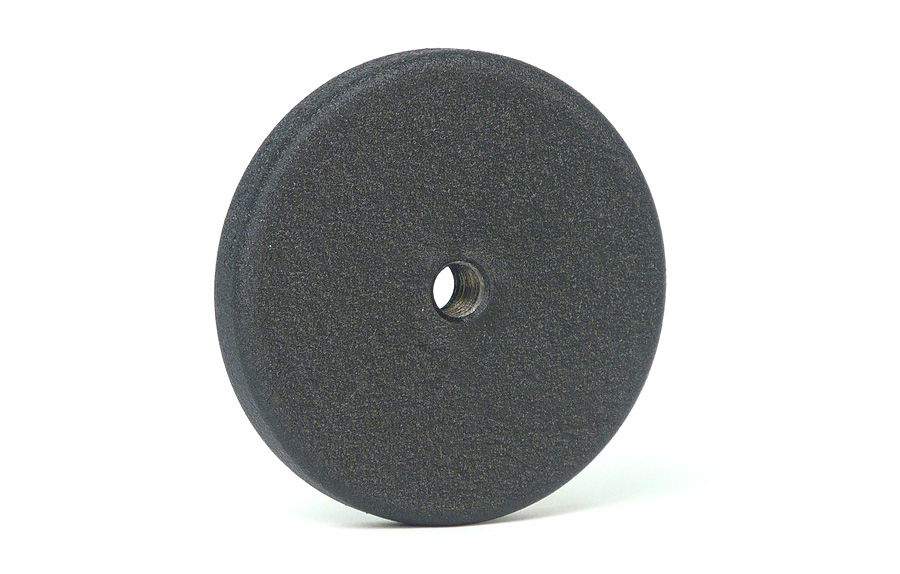

2.5 BW $20.00 2.5 lb. weight, for use on DVDWS, DVWS, or WS systems.
2.5 lb weight
Click for larger image


5.0 BW $35.00 5 lb. weight, for use on DVDWS, DVWS or WS systems.
5 lb weight
Click for larger image

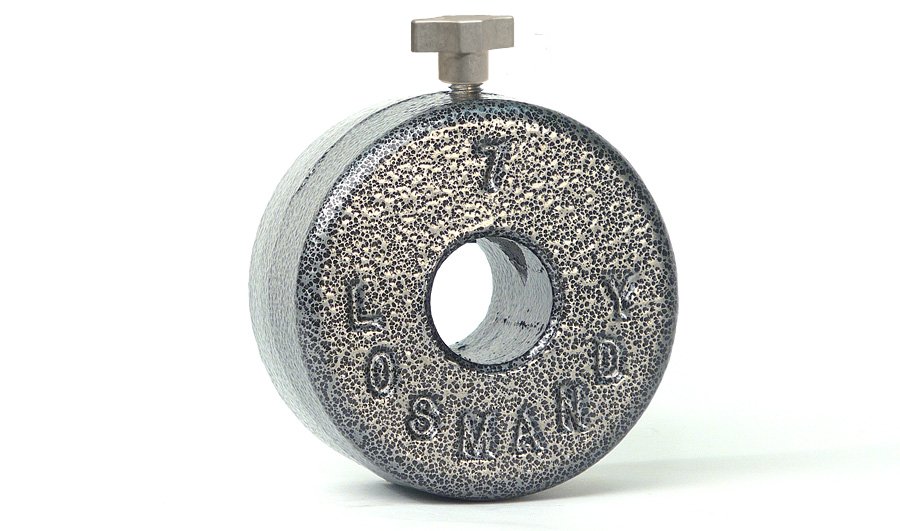

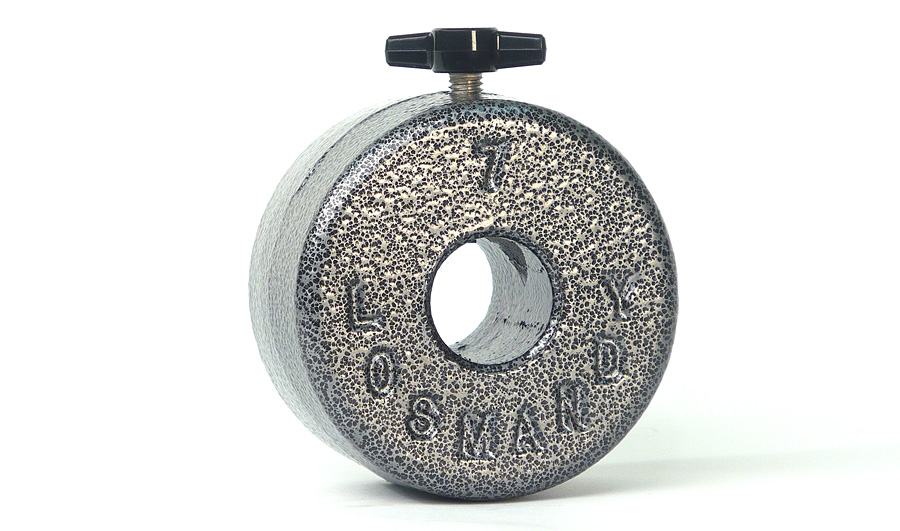

7 LB $50.00 7 lb. weight, for use on GM 8, G-9 and G-11 mounts.
7 lb weight
Click for larger image

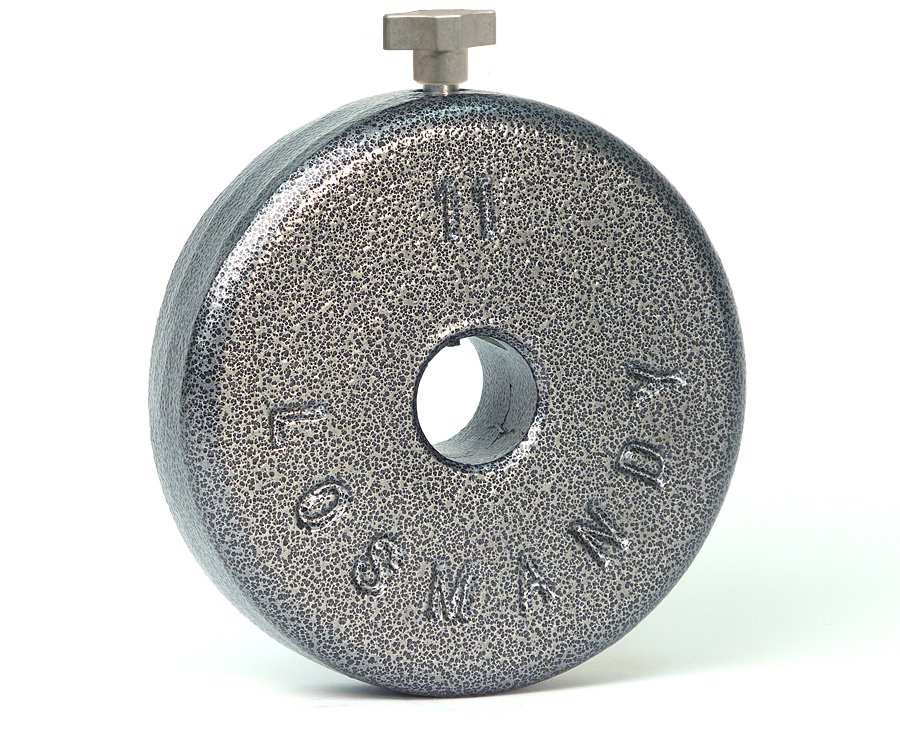

11 LB $75.00 11 lb. weight, for use on GM 8, G-9 and G-11 mounts.
11 lb weight
Click for larger image

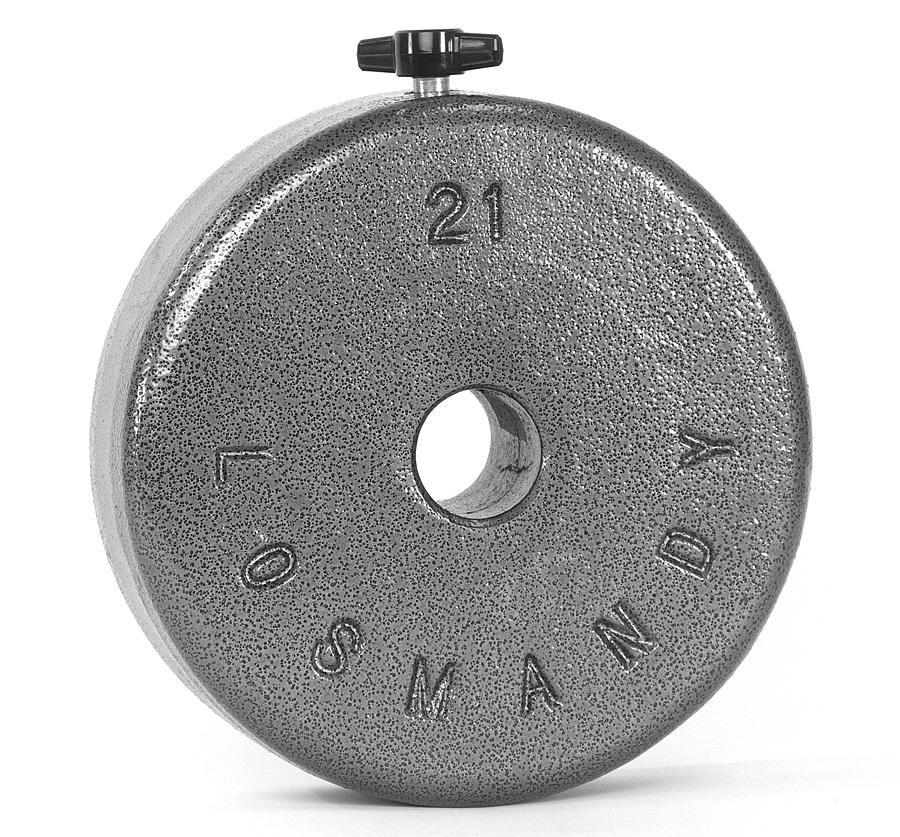

21 LB $100.00 21 lb. weight, for use on GM 8, G-9 and G-11 mounts.

Click for larger image

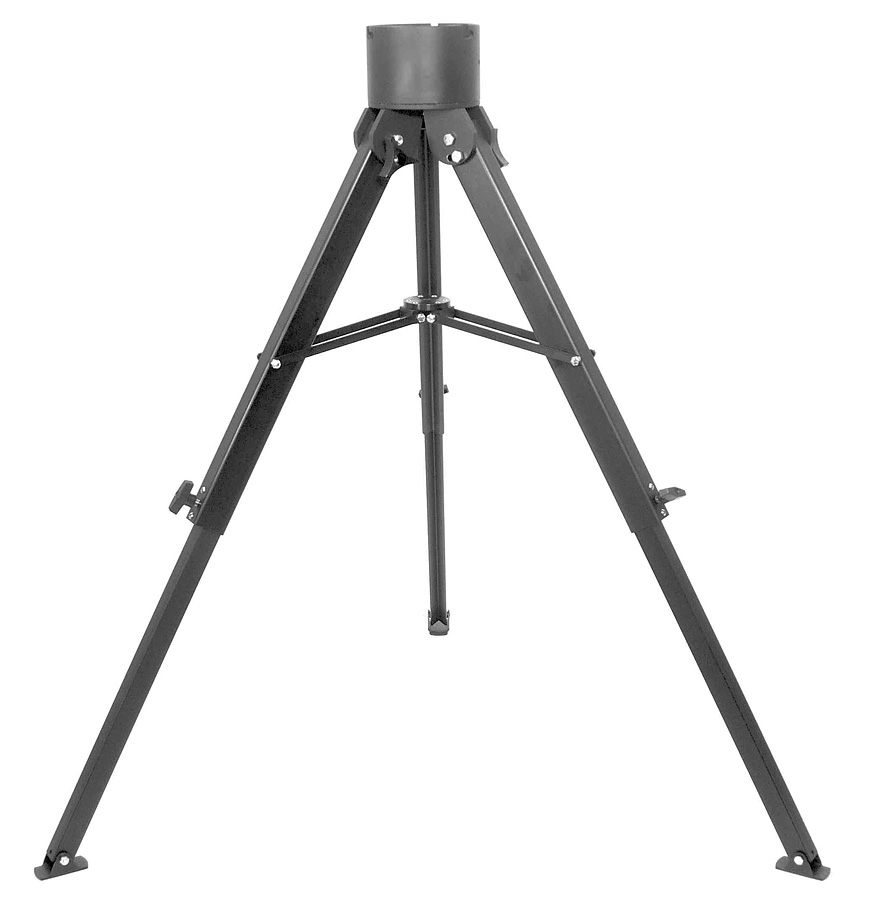

LW TRIPOD $500.00 GM 8 tripod
LW Tripod
Click for larger image
  with adjustable leg design. Height range from 26" to 44"
All heights are from ground level to top of tripod, vertical.
Carries up to 100 lbs. Fits GM 8, G-9, G-11 mounts.
Wt. 15 lbs.

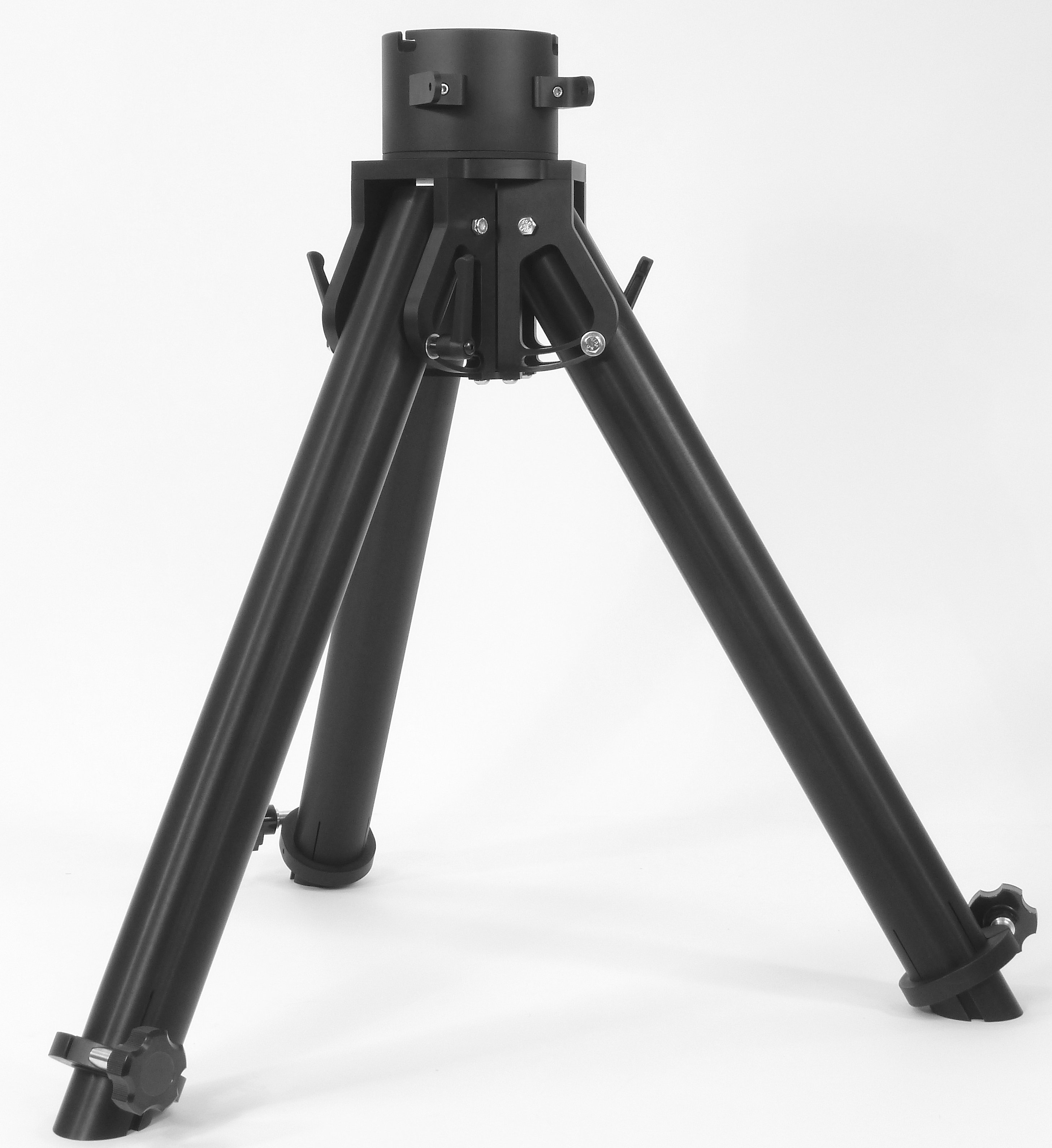

FHD-MA $850.00 Folding HD tripod with MA top for GM 8 & G-11 mounts
FHD Tripod
Click for larger image
  with adjustable leg design. Height range from 33" to 52"
All heights are from ground level to top of tripod, vertical.
Carries up to 425 lbs.
Wt. 35 lbs.

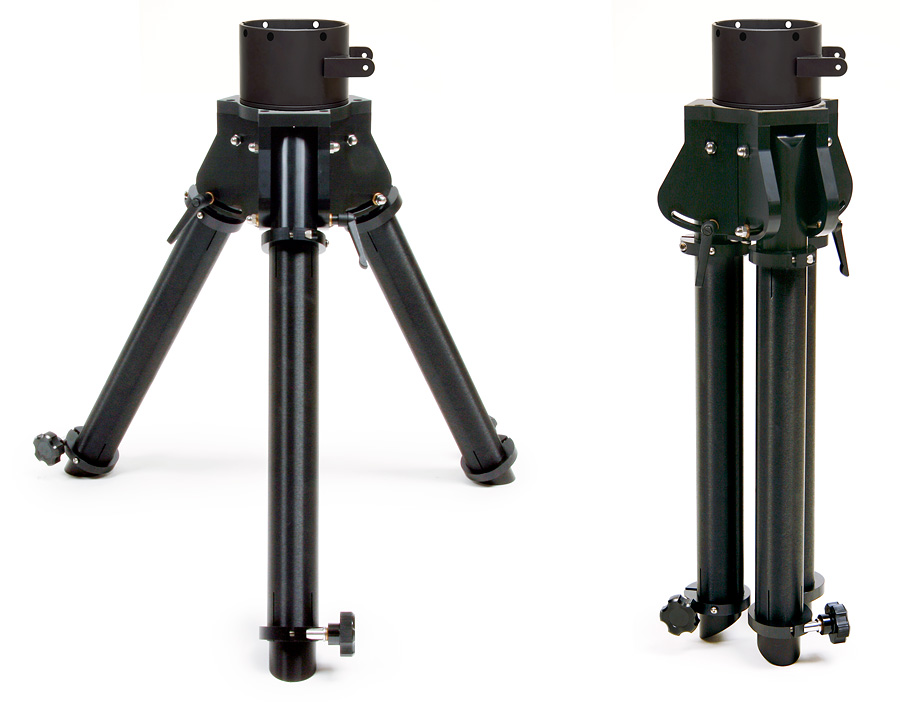

FHD-MAL $950.00 Folding HD tripod with MAL top for HGM Titan, HGM 200 and GM 200 mounts.
FHD Tripod
Click for larger image
  with adjustable leg design. Height range from 33" to 52"
All heights are from ground level to top of tripod, vertical.
Carries up to 425 lbs.
Wt. 36 lbs.





MA $100.00 FHD / Meade field tripod adapter
MA
Click for larger image
  6.0" diameter, 4.0" high. Inside machined to fit G-11 and GM 8 mounts. Tube has 1/2" thick bottom with 1/2" hole in center, posts for the electronics are mounted on the side. Also used on top of permanent piers.

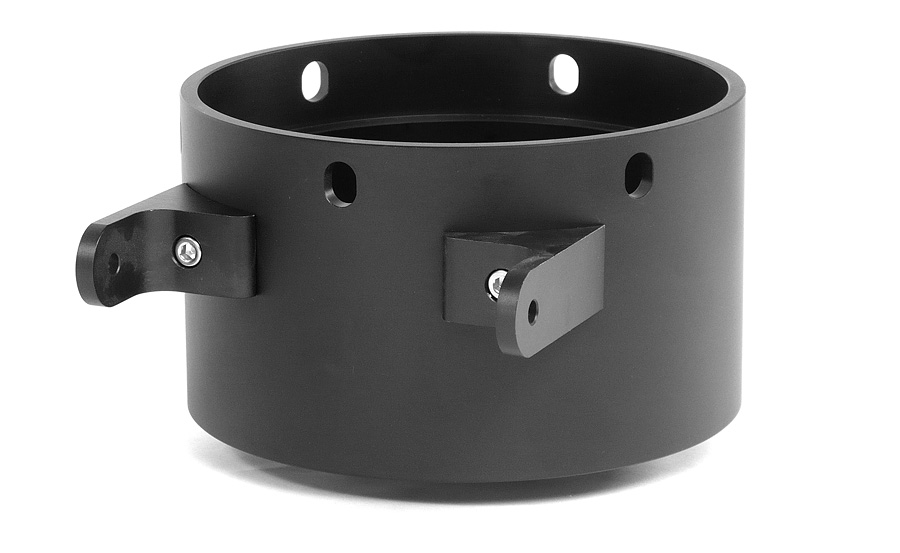

MAL $250.00 FHD / Meade field tripod adapter (LARGE)
MAL
Click for larger image
  7" diameter, 4.0" high. Inside machined to fit HGM Titan, HGM 200 and GM 200 mounts. Tube has 1/2" thick bottom with 1/2" hole in center and hole pattern to mount on Large Meade Field Tripod. Posts for the electronics are mounted on the side. Also used on top of permanent piers.

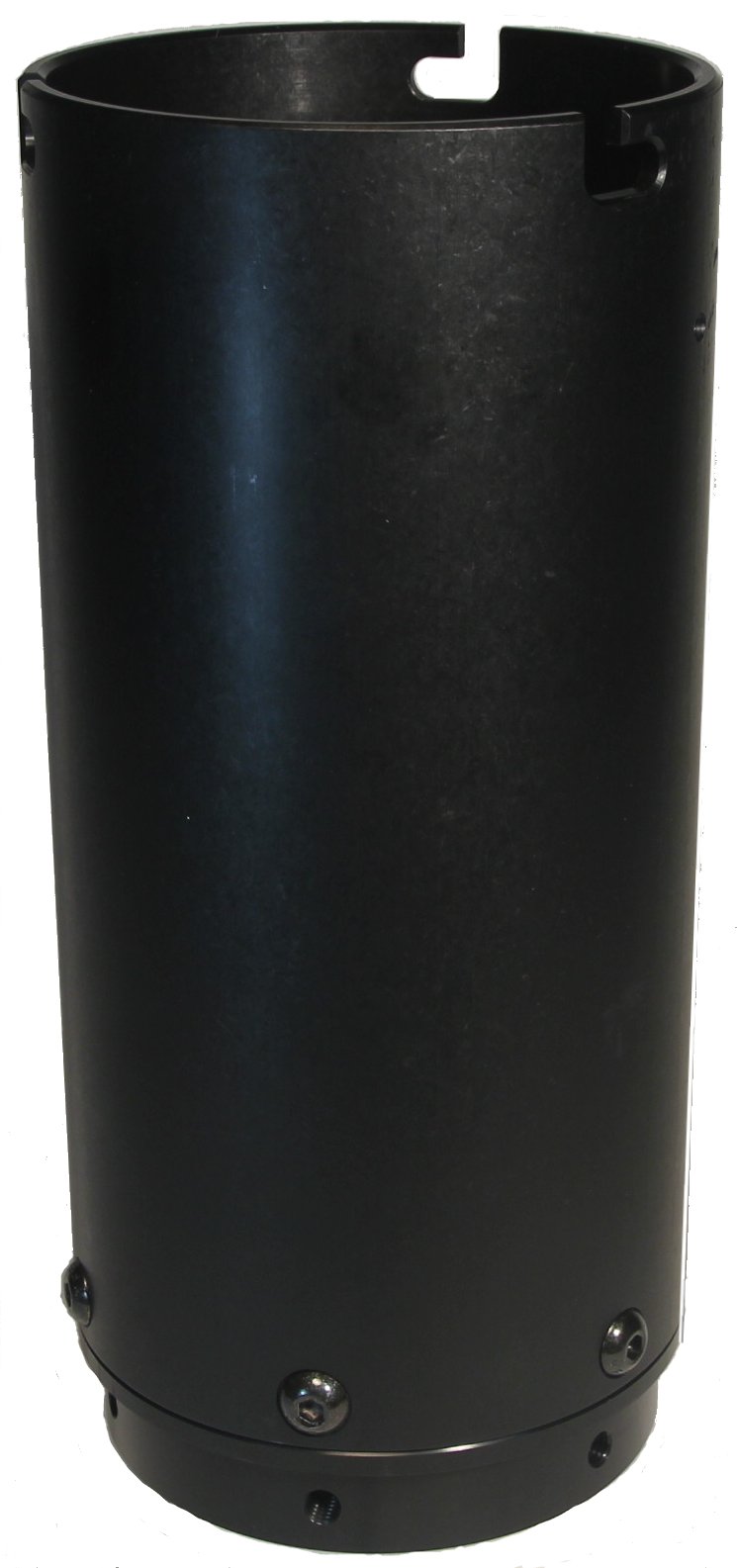

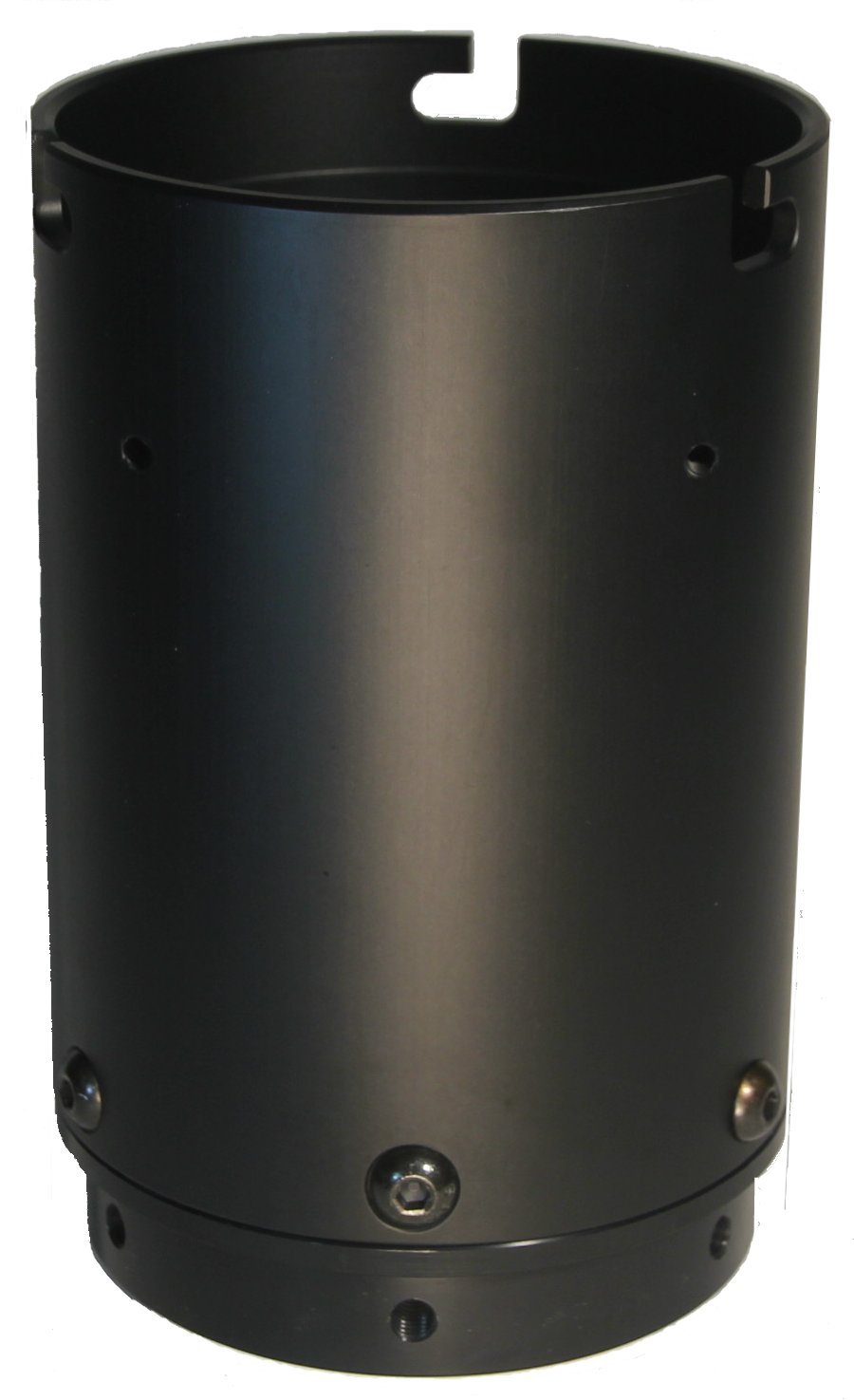

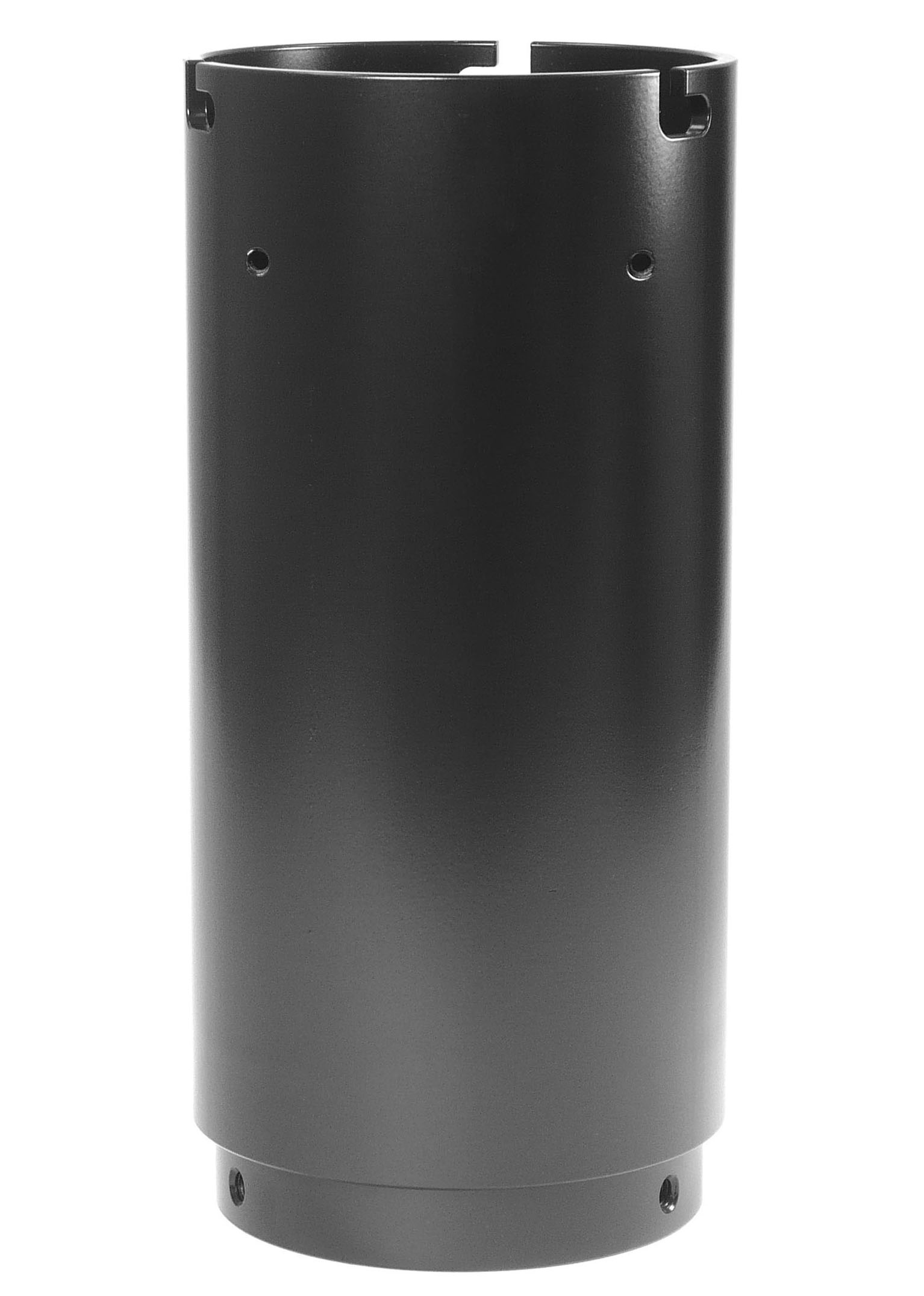

EX12 $125.00 Tripod Extension
EX12
Click for larger image
  12 inch Tripod Extension. Fits to the top of LW-Tripod, HD-Tripod, MA.

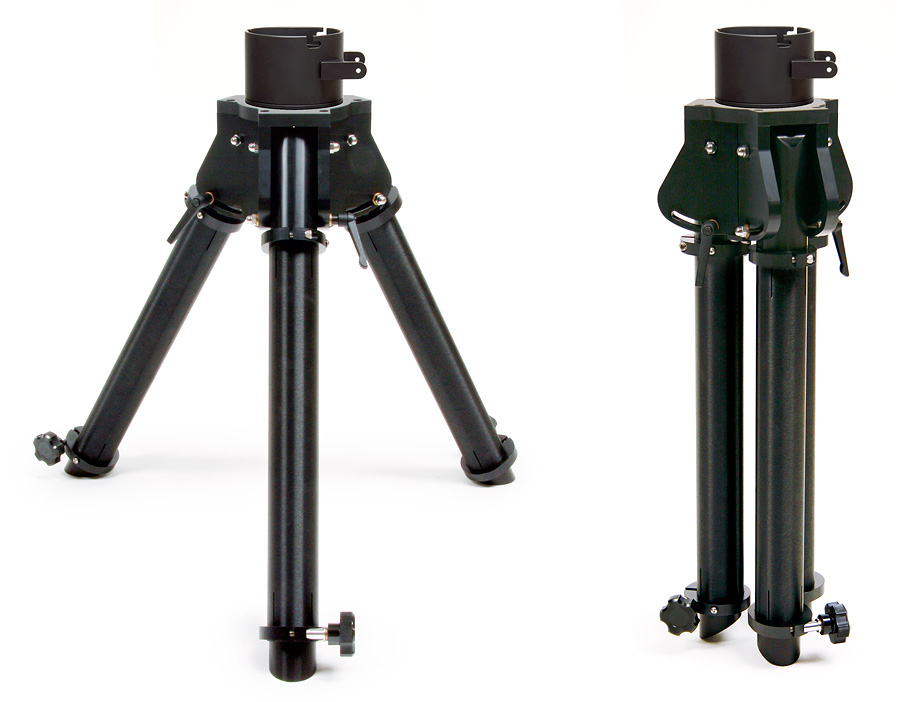

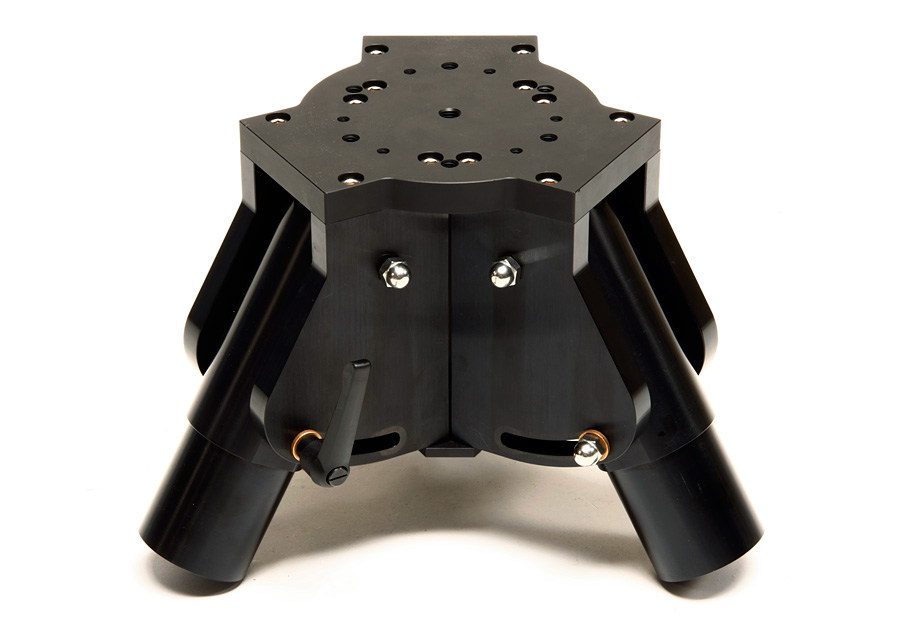

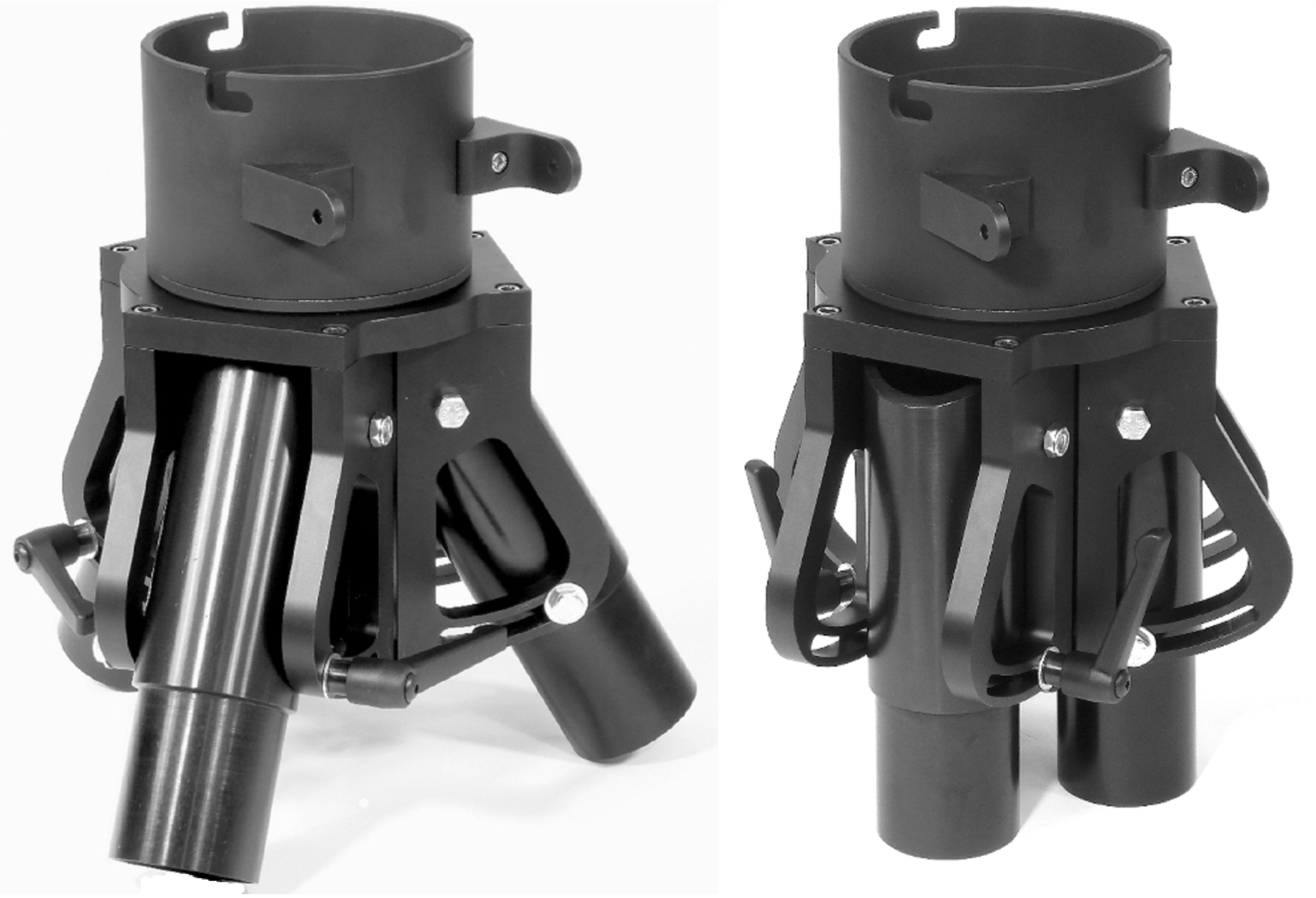

FHD TOP $595.00 Folding HD Tripod Top with MA
FHD Top
Click for larger image

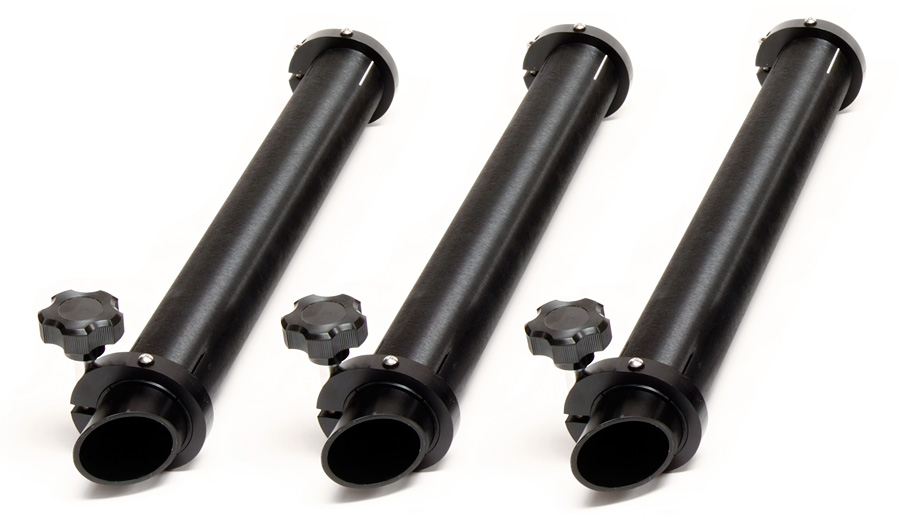

Use with your current HD Tripod Legs to convert your tripod to a Folding Tripod.

Wt: 17 lbs.

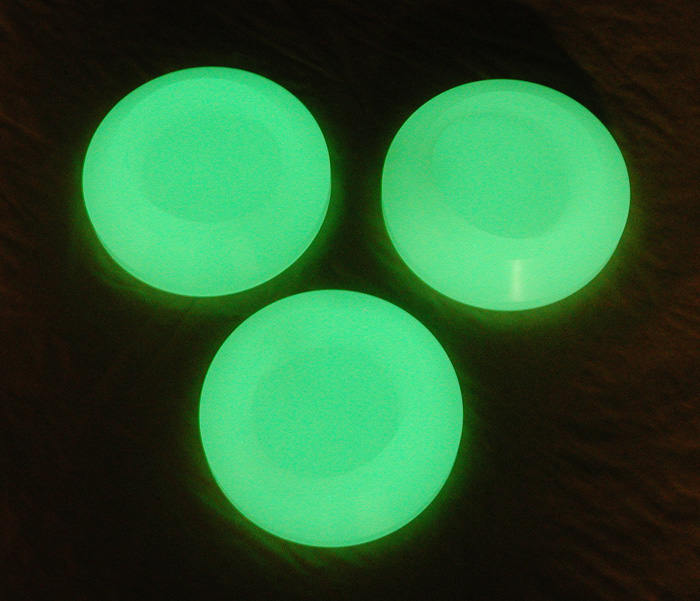

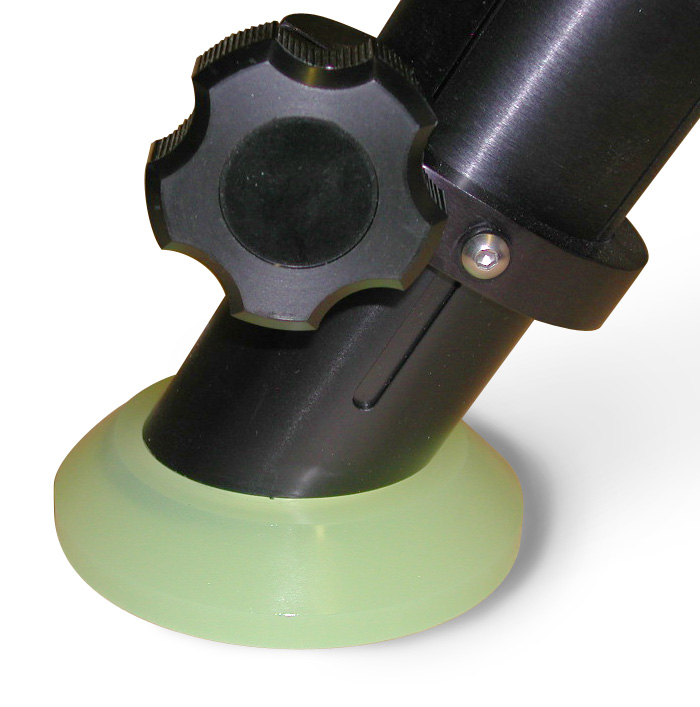

BP $100.00 HD TRIPOD FOOT   Set (3)
BP BP
Click photos for larger image
  Fits G-11 (HD Tripod) adjustable tripod legs. 5" diameter for large surface contact. Dampens vibrations and glows for up to 15 hours. Set of 3.

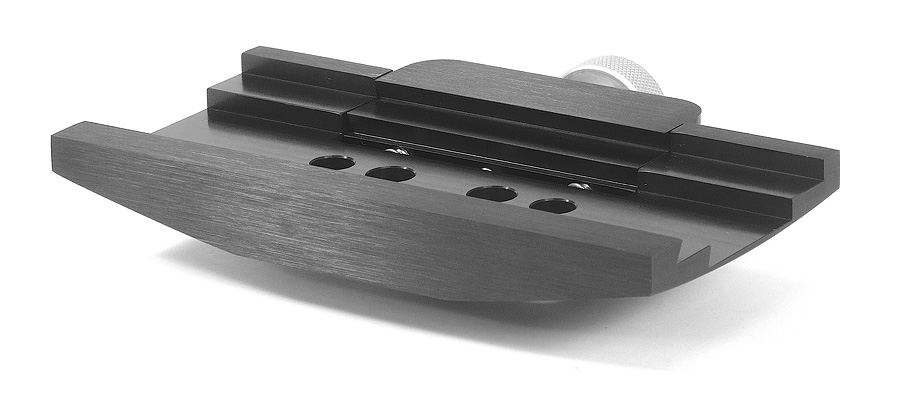

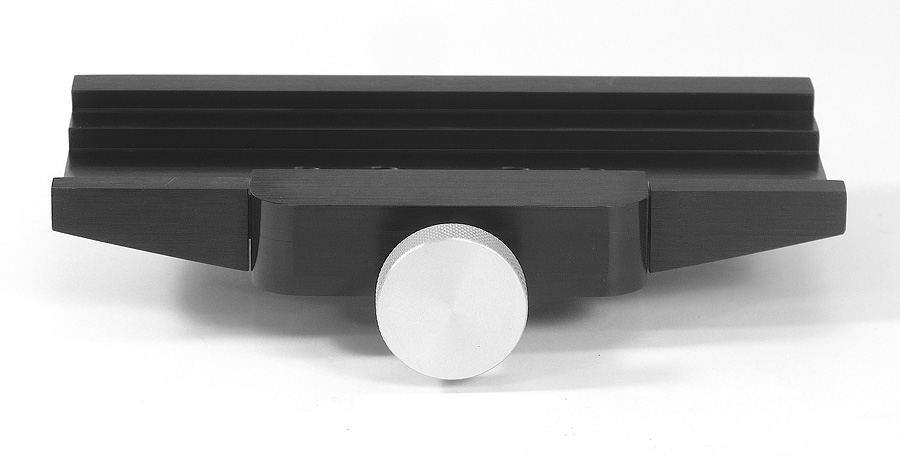

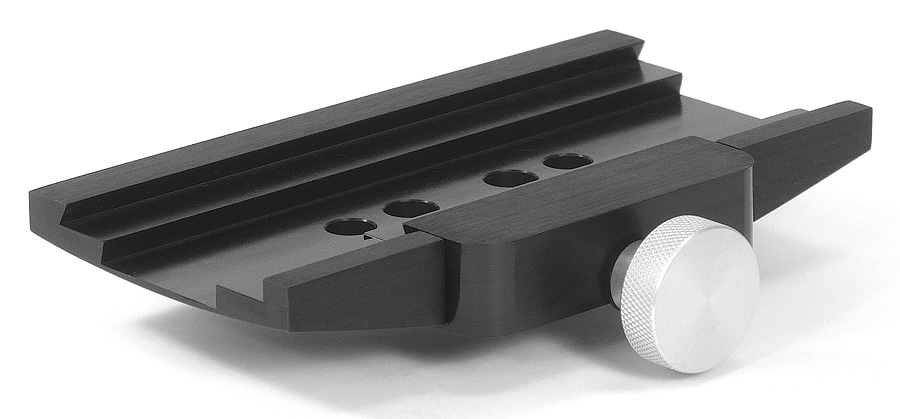

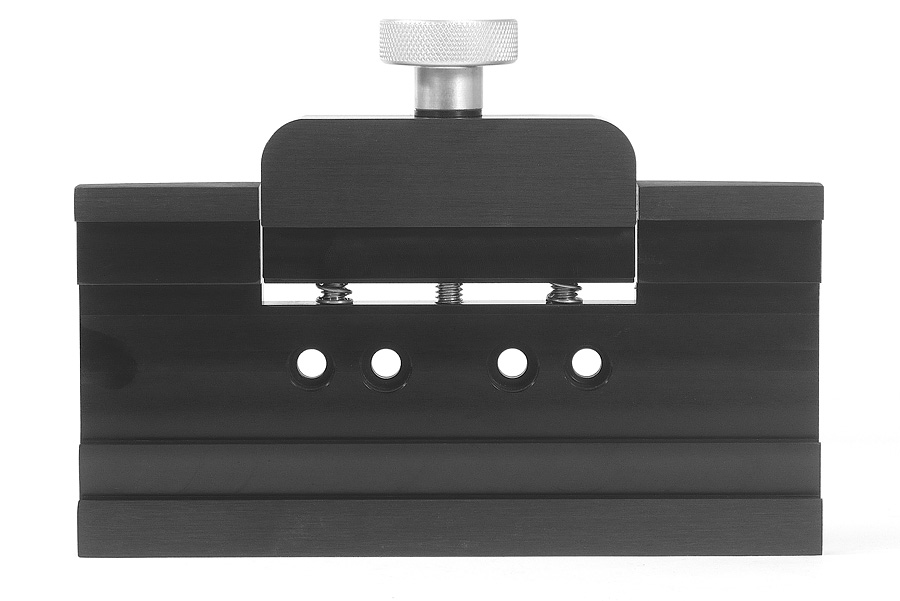

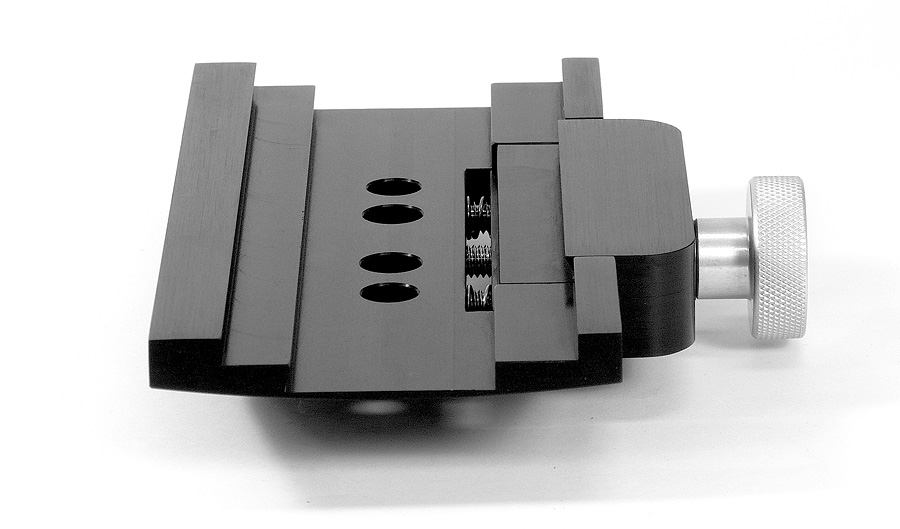

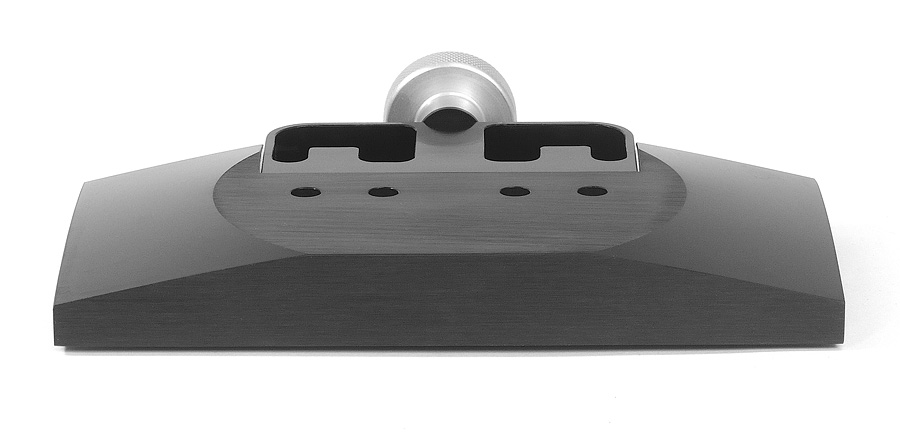

G-11 SPDV $130.00 G-11 saddle plate
G11SPDV
Click for larger image
  Saddle Plate for GM 8, G-11 and Takahashi mounts. Accepts "D" and "V" series dovetail plates.
Wt. 2 lbs. Size 1"x 4.0"x 8.0", 2 holes 3" sep., 2 holes 35mm sep.

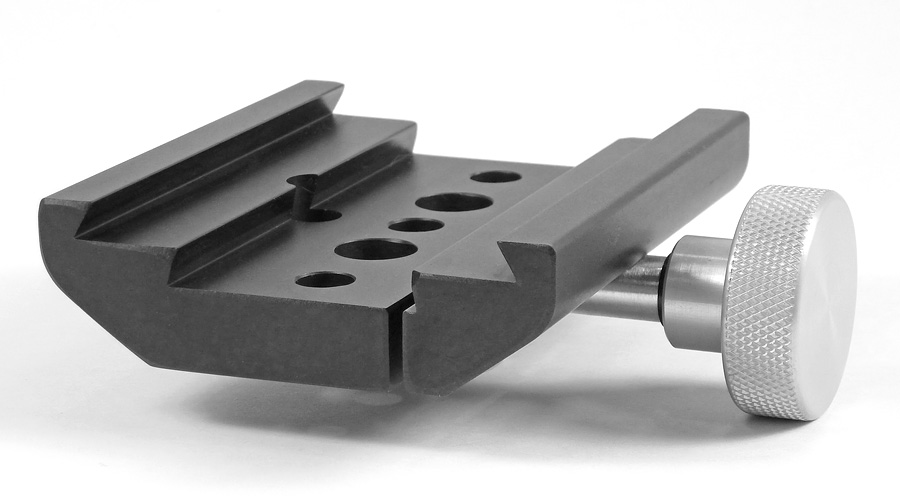

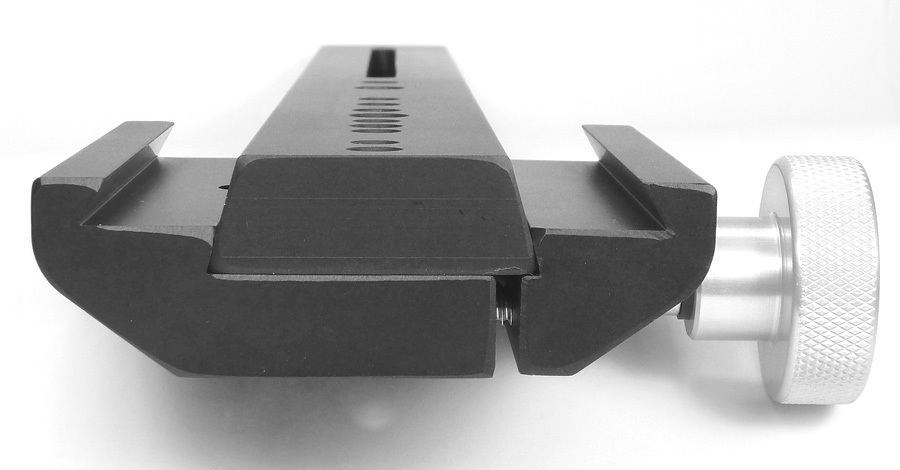

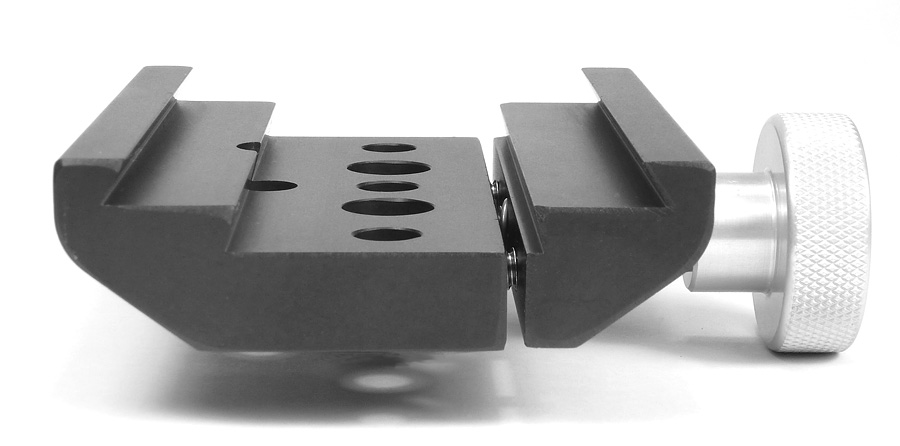

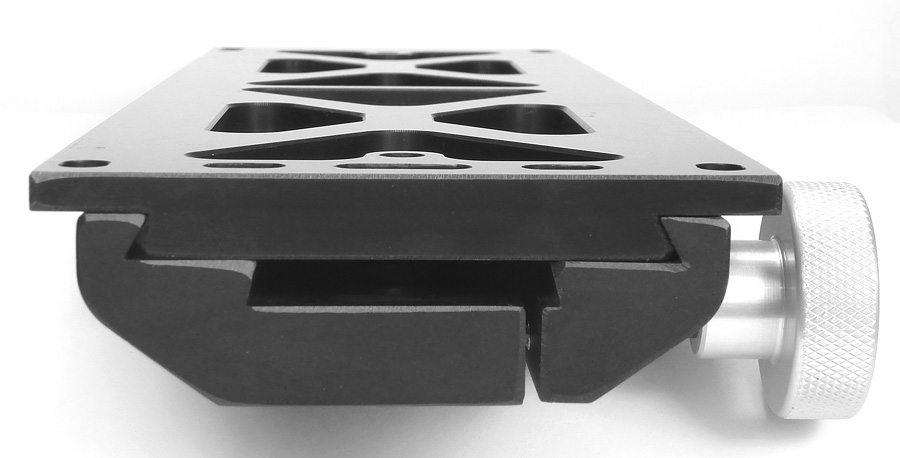

GM 8 SPDV $100.00 GM 8 saddle plate
GM8 SPDV
Click for larger image
  Saddle Plate for GM 8, G-11 and Takahashi mounts. Accepts "D" and "V" series dovetail plates.
Wt. 14.5 oz. Size 1"x 4.0"x 4.0", 2 holes 3" sep., 2 holes 35mm sep.
GM8 SPDVGM8 SPDVGM8 SPDV
           Click photos for other views

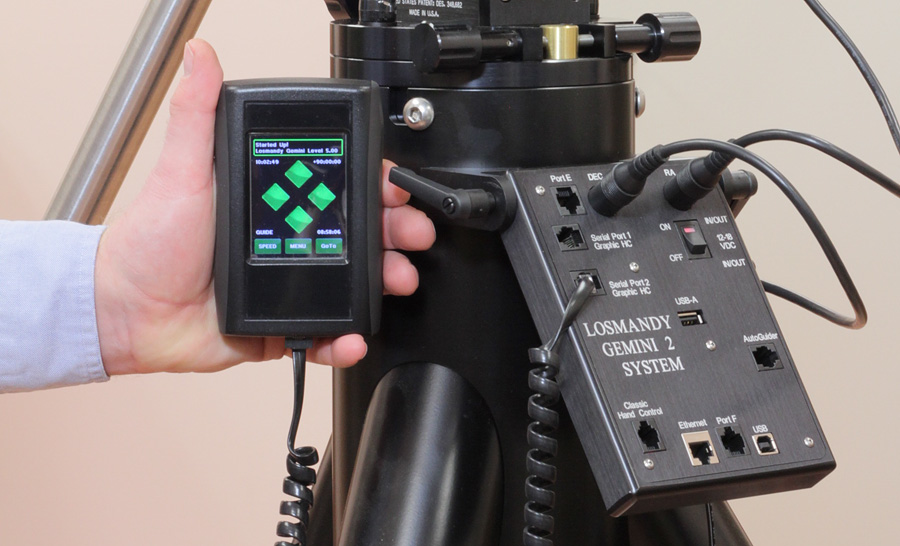

GEMINI 2 RETRO-FIT KIT $1595.00 Gemini 2 GOTO Servo System
GEMINI 2 RETRO-FIT KIT M
Click for larger image


DC servo motor based GOTO computerized positioning system.
Retro-Fit Kit for: GM 8, G-11, HGM200 & G9 equatorial mounts.

Includes: Gemini 2 Main Control Unit,Touch Screen Hand Controller,
2 servo motors, 2 control boxes, all cables and mounting hardware.




GEMINI 2 UPGRADE $1095.00 Gemini 2 Main Control Unit and Touch Screen Hand Controller.
    To upgrade from Gemini 1 system.

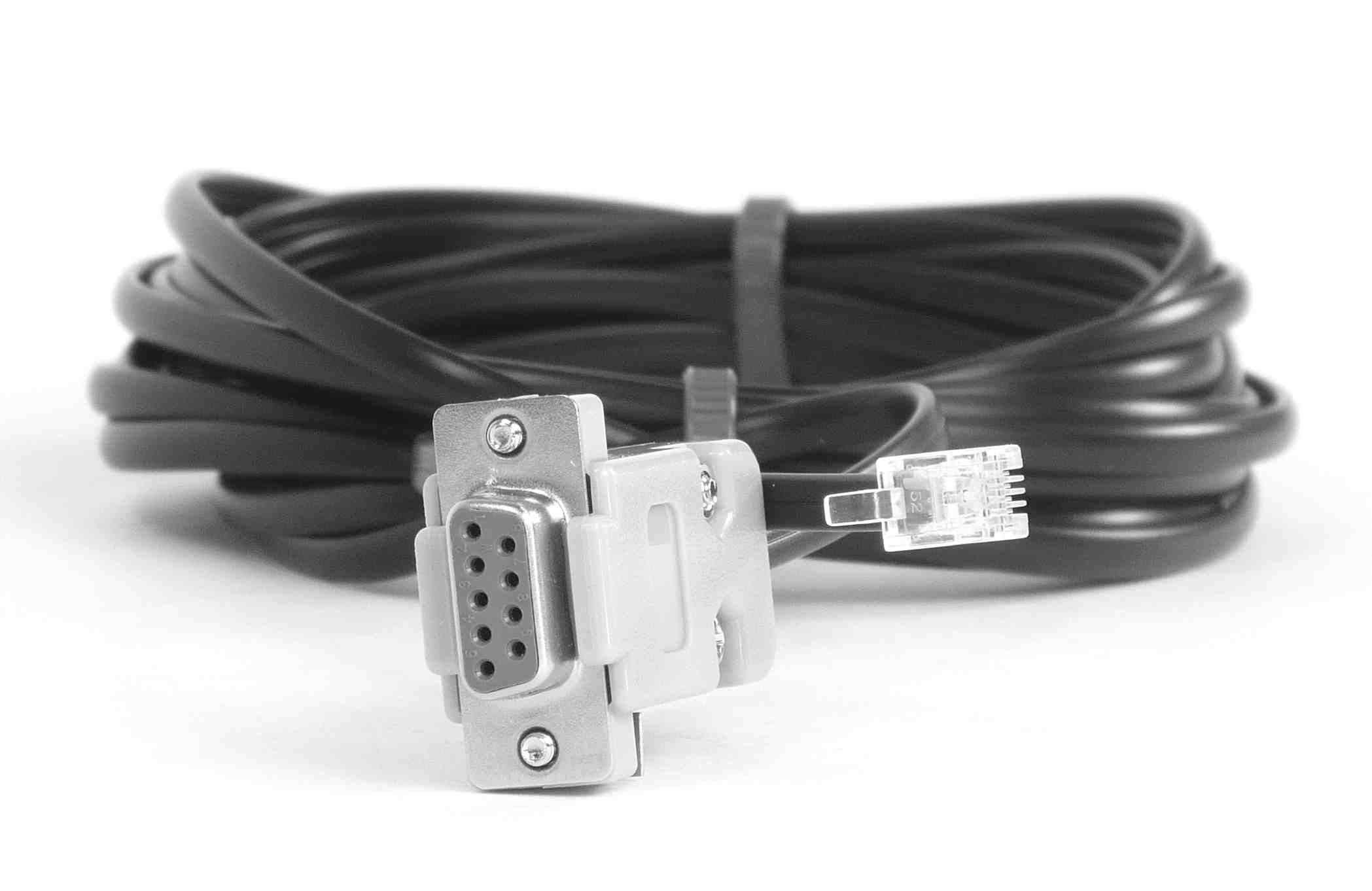

GCC $25.00 Gemini 1 to RS-232 Serial Computer Cable

GCC GEM 2 $25.00 Gemini 2 to RS-232 Serial Computer Cable

Click for larger image

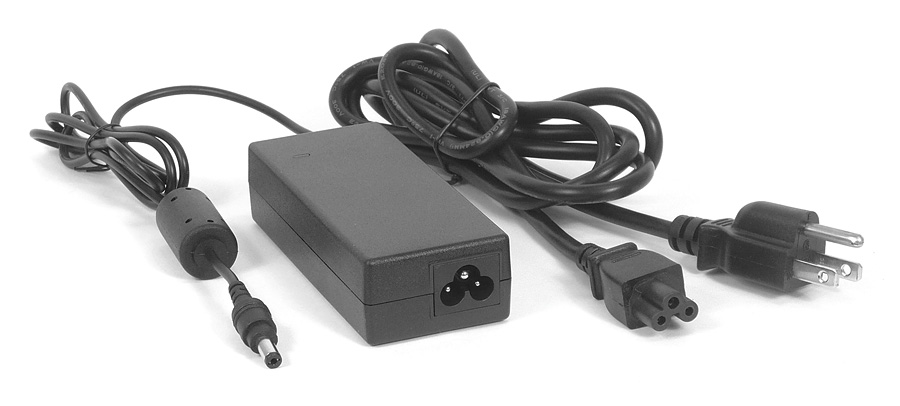

ACDC $79.00 Gemini System Power Supply

Click for larger image
  Power adapter for use with AC.
Universal Input: 100~240V 2.0A
DC Output: 15DC regulated 4.3A

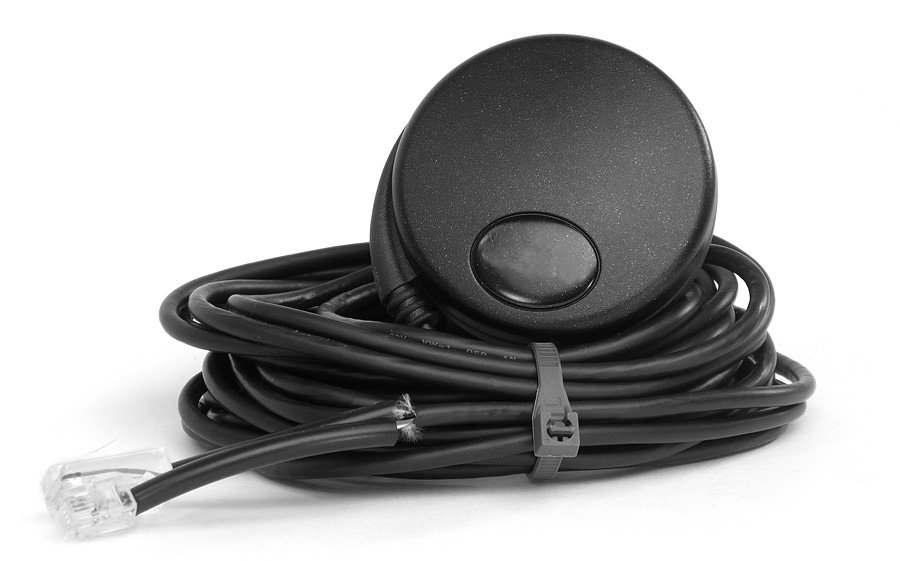

GPS1 $150.00 Garmin GPS for Gemini 1 System
Garmin GPS
Click for larger image
  Plug large connect in to the Gemini feature port and the small connect in to the Gemini RS-232 port.
Make sure that the GPS unit is away from the mount.
Turn on the Gemini, wait 3 to 5 minutes.
Turn off the Gemini, wait 15 seconds and then turn on the Gemini.
All information will be downloaded into the Gemini unit.
Unplug the Garmin GPS unit. You can do this with out turning off the Gemini.

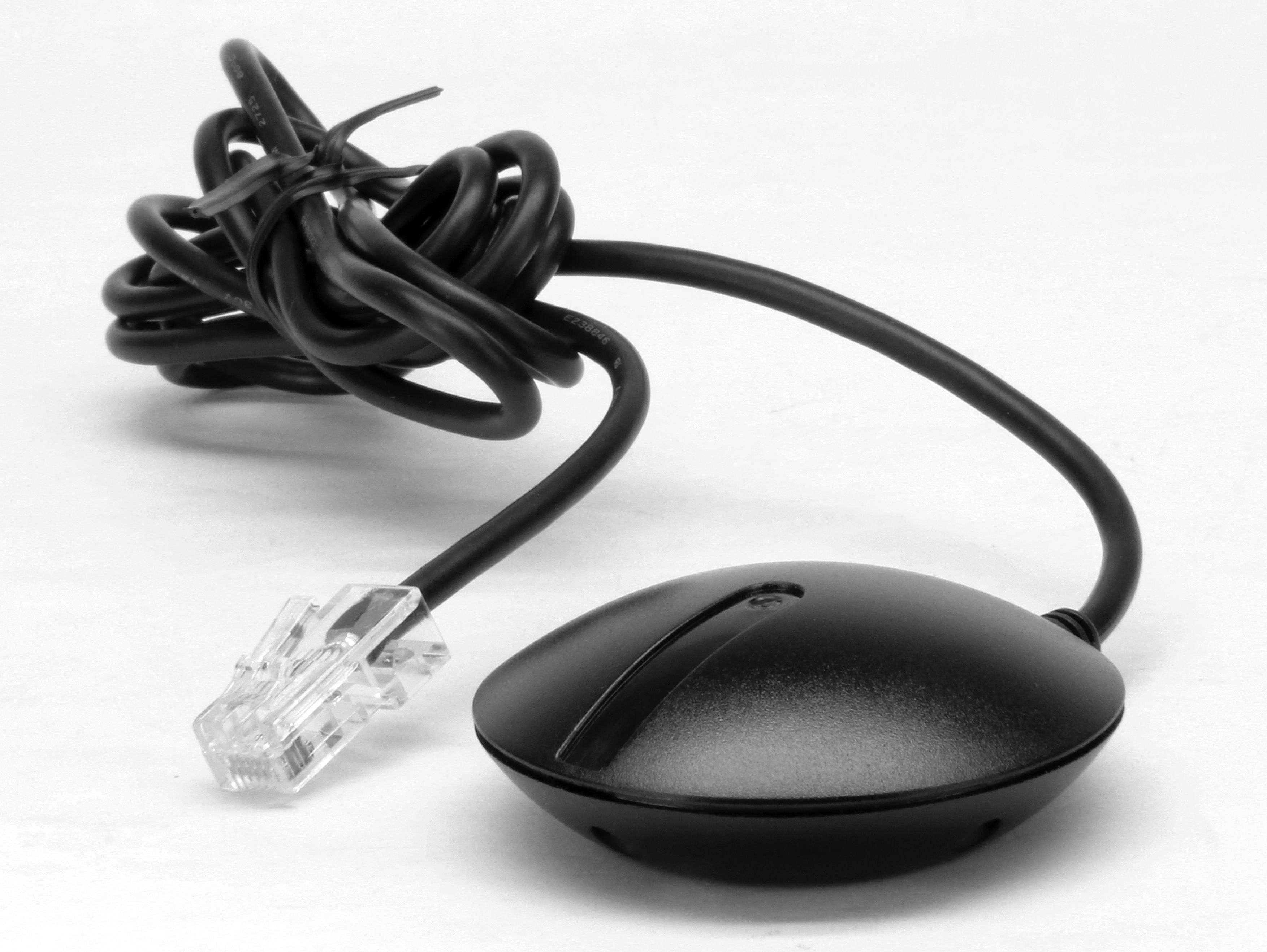

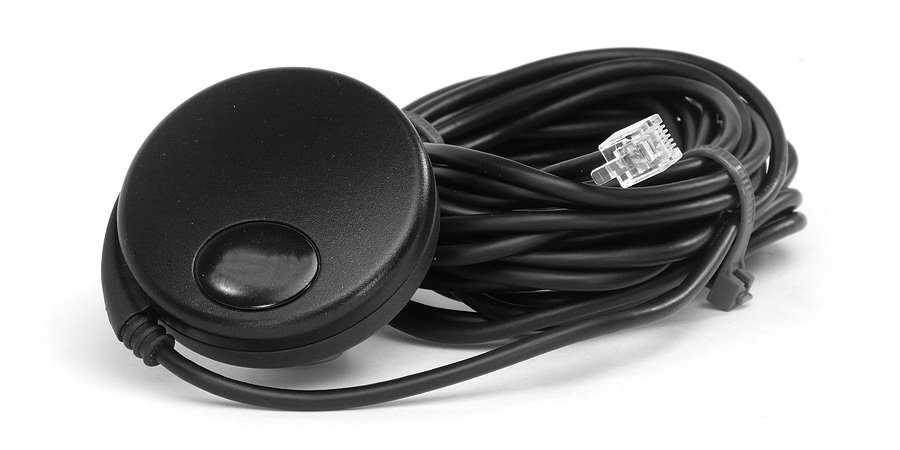

GPS2 $150.00 Garmin GPS for Gemini 2 System
Garmin GPS2
Click for larger image
  Plugs into port 1 on Gemini 2 system


DSCH $395.00 Digital Setting Circle Hardware
DSCH
Click for larger image
  Two 12288 line optical encoders with readers. Encoders lock to shafts, NO radial movement, 6 stainless steel pin are used for linear movement. This system gives full use of the clutches without any misreading. Machined aluminum housings to enclose optical encoders and readers. Kit includes R.A. and DEC. cable.
DSCH RA  DSCH DEC
           Click photos for other views

PS $200.00 Polar Scope Finder
Polar Scope Finder
Click for larger image
  For GM 8, G-9 and G-11 mounts and the StarLapse system. Works in Northern or Southern Hemispheres. Direct reading. No calculations needed. Rotate polar scope and adjust alta-azimuth knobs. Includes self-contained, battery operated variable LED illuminator.

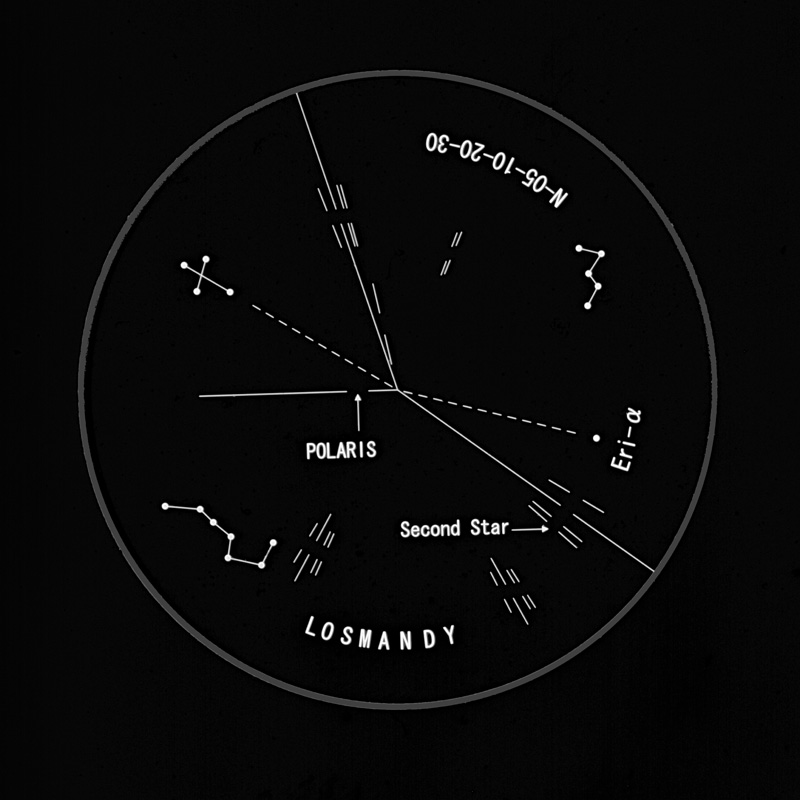

Click HERE for a view of the reticle

PSI $45.00 Polar Scope Illuminator
PSI PSI
Click photos for larger image
  Our completely redesigned PSI will illuminate the alignment reticle of the PS polar scope with five different intensities in both constant and flashing modes. A microprocessor activates the red LED in the selected mode, then automatically turns off after two minutes.

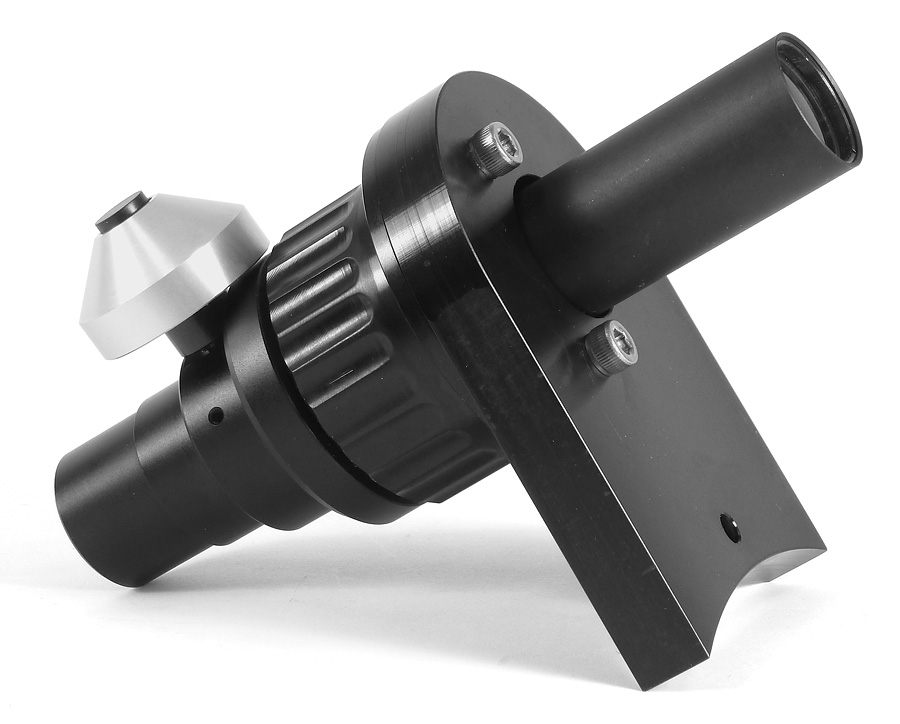

HGM TPS $300.00 HGM Titan Polar Scope
Polar Scope Finder
Click for larger image


TKS $29.00 Tripod knob set. Set (3)
TKS
Click for larger image
  Machined aluminum knobs with stainless steel threaded shafts. For mounting equatorial head to tripod without tools.
Fits GM 8 and G-11 mounts.

LCLSClick for larger image

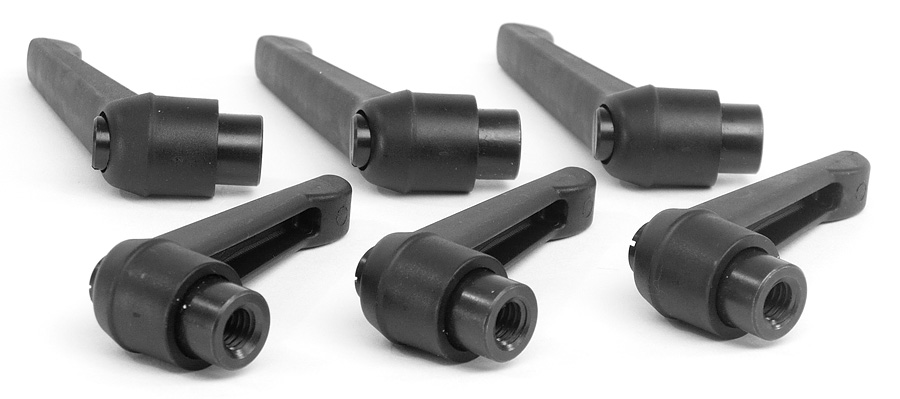

LCLS $65.00 Leg clamp lever set. Set (6)
LCLS
Click for larger image
  Lever type, indexable handles. Fits leg clamps, replacing round knobs. Indexable so they can be moved out of the way.

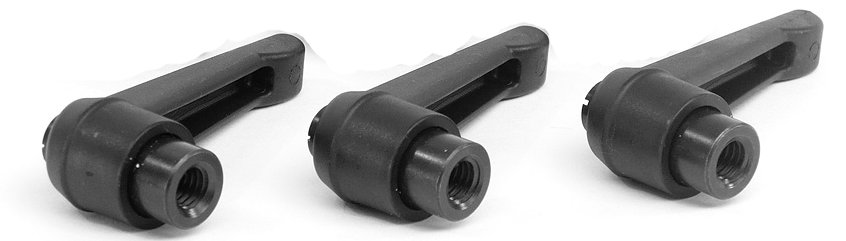

LCLS-FT $33.00 Leg clamp lever set. Set (3)
LCLS
Click for larger image
  Lever type, indexable handles. Set of 3 for Folding Tripod. Fits leg clamps, replacing round knobs. Indexable so they can be moved out of the way.

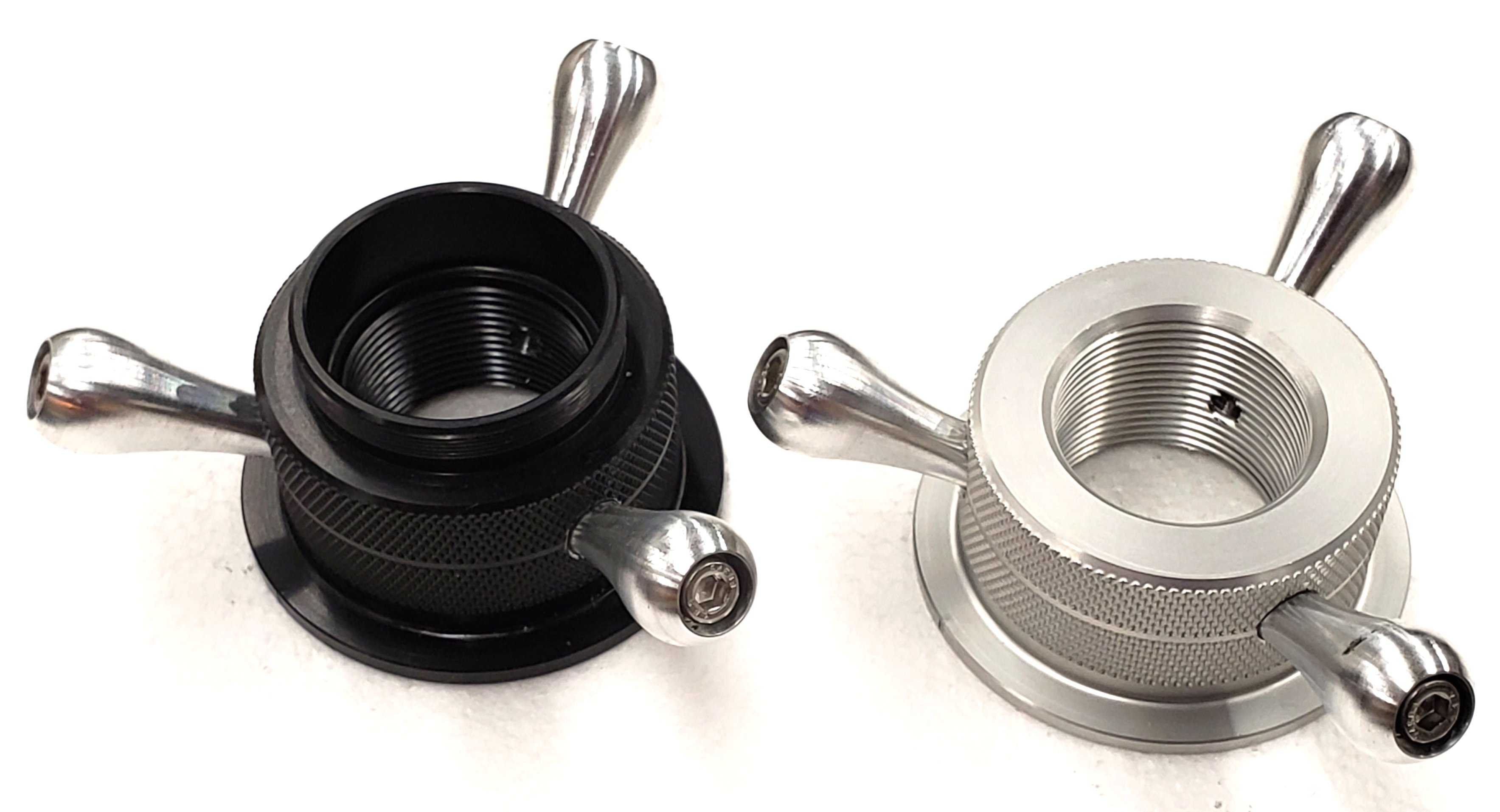

CKS $125.00 Clutch knob set (2)
CKS
Click for larger image
  R.A. and DEC. with (3) handles @ 30 degrees. For GM 8, G-9 and G-11 mounts. Makes clutch knobs easier to use, and gives greater clutching range.

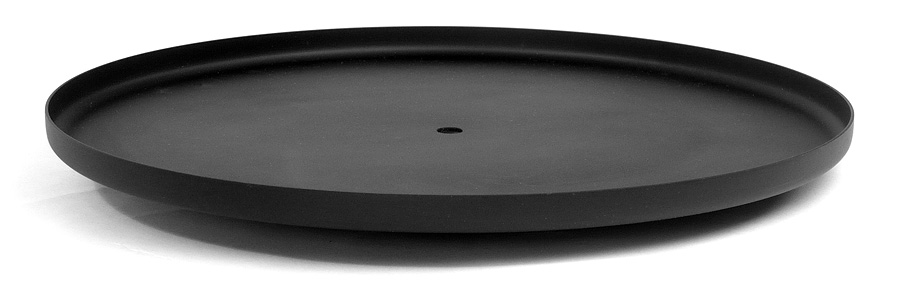

TRI-TRAY $50.00 Accessory tray
TRI-TRAY
Click for larger image
12" diameter, 1/2" deep, black powder coated. Fits GM 8 tripod with spreader.

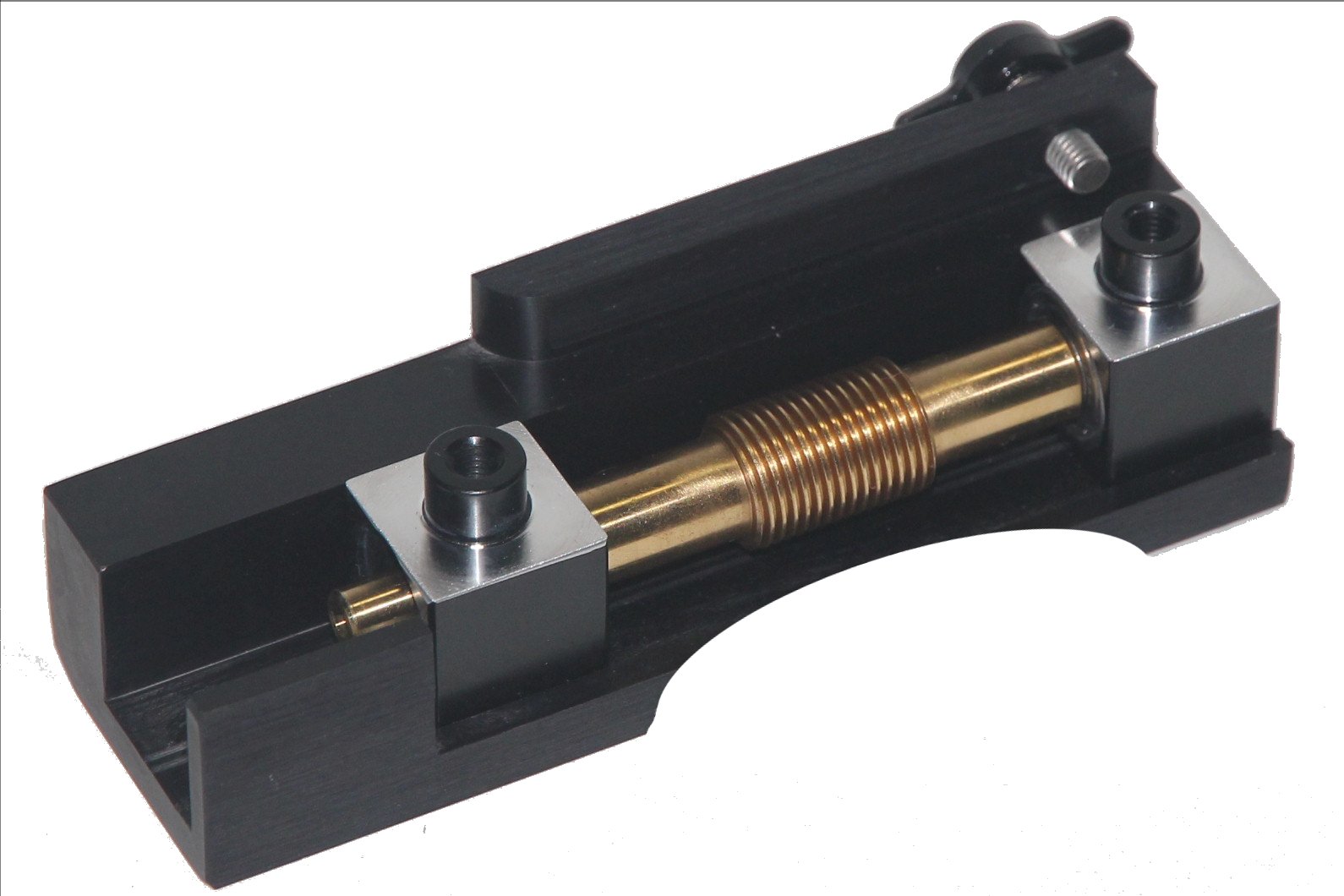

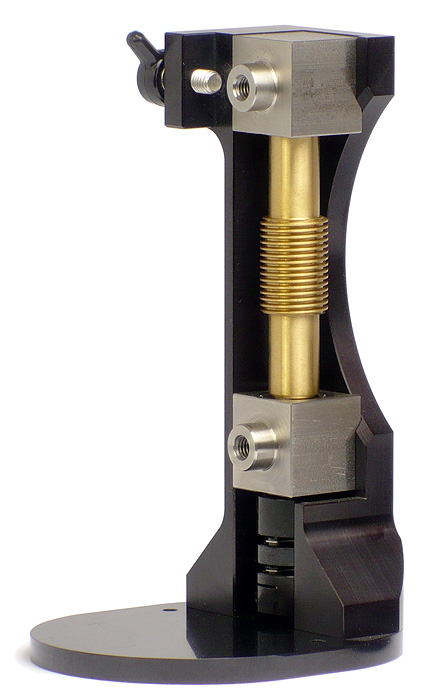

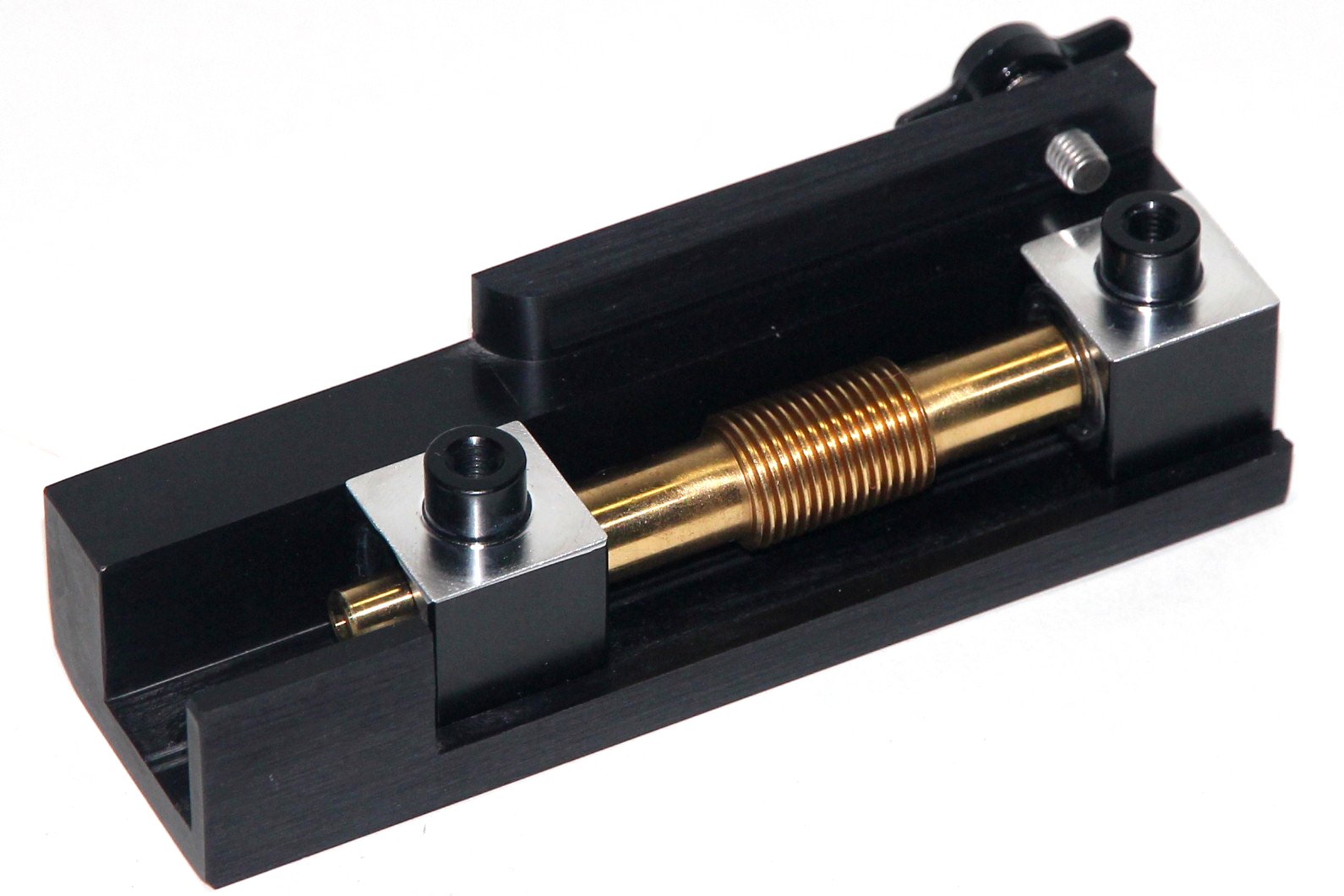

OPW-8 $295.00
Without worm


Click for larger image
  Precision stainless steel bearing block & 7075 aluminum housing. All in-line motor/gearbox worm design. Preloaded bearings & screw adjust worm gear mesh.
$355.00
With high-precision worm

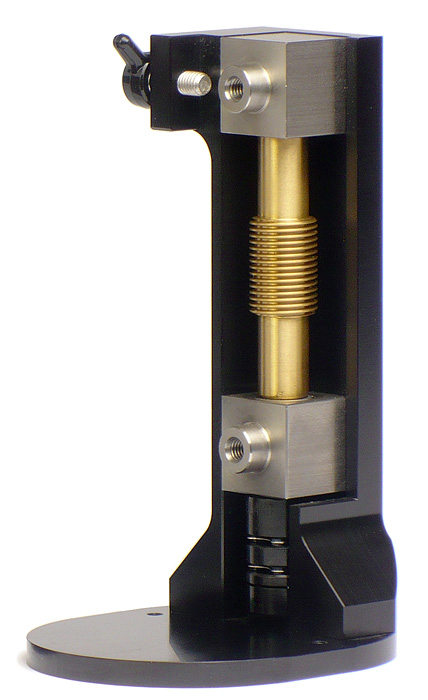

OPW-11 $295.00
Without worm


Click for larger image
  Precision stainless steel bearing block & 7075 aluminum housing. All in-line motor/gearbox worm design. Preloaded bearings & screw adjust worm gear mesh.
$355.00
With high-precision worm



ALL SPECIFICATIONS MAY AND WILL CHANGE WITHOUT NOTICE

Hollywood General Machining, Inc.
1033 N. Sycamore Avenue
Los Angeles, California   90038
323-462-2855       FAX: 323-462-2682

For More Information Contact: Hollywood General Machining, Inc.
