AZ8 knob and saddle





Introducing the New

AZ8

ALT / AZ Mount

Click Here for the AZ8 Information Page




New DVR 108/66 Three Ring Guide Scope Setup
DVR108/66 Orion Awesome AutoGuider Scope Ring Set
Click for larger image
DVR108/66 80mm Orion AutoGuider Scope Mounting Rings
Click for larger image

Two Rings to hold the AutoGuider Scope and one Ring to stabilize the camera/guider. Prevents movement of the camera/guider while guiding

(Dovetail plate and Orion 80mm AutoGuider Scope not included. Shown only as an example of use)

Works with both D and V series plates.
Weight 2 lbs 14 oz

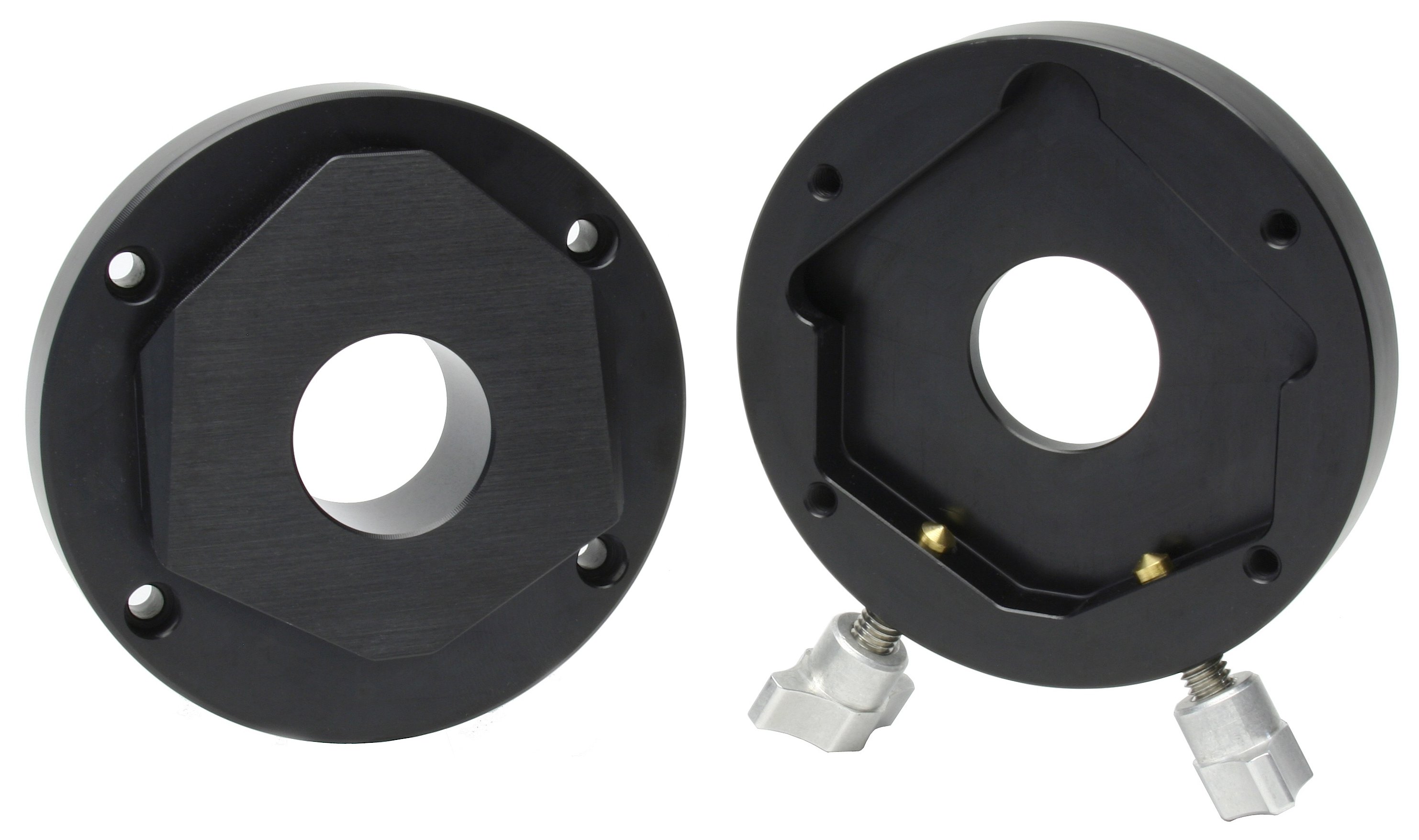

New DSCH Digital Setting Circle Hardware
DSCH_RA
Click for larger image
DSCH_DEC
Click for larger image
DSCH_KIT
Click for larger image

Two 12288 line optical encoders with readers. Encoders lock to shafts, NO radial movement, 6 stainless steel pin are used for linear movement. This system gives full use of the clutches without any misreading. Machined aluminum housings to enclose optical encoders and readers. Kit includes R.A. and DEC. cable.

Price: $395

Links to manufactures of the electronics used with the DSCH
Astrodevices
Sky Commander
Wildcard Innovations
Link to DSCH assembly drawing
Assembly Drawing

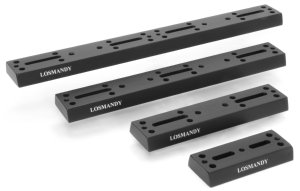

VUP VUP
Click for larger image

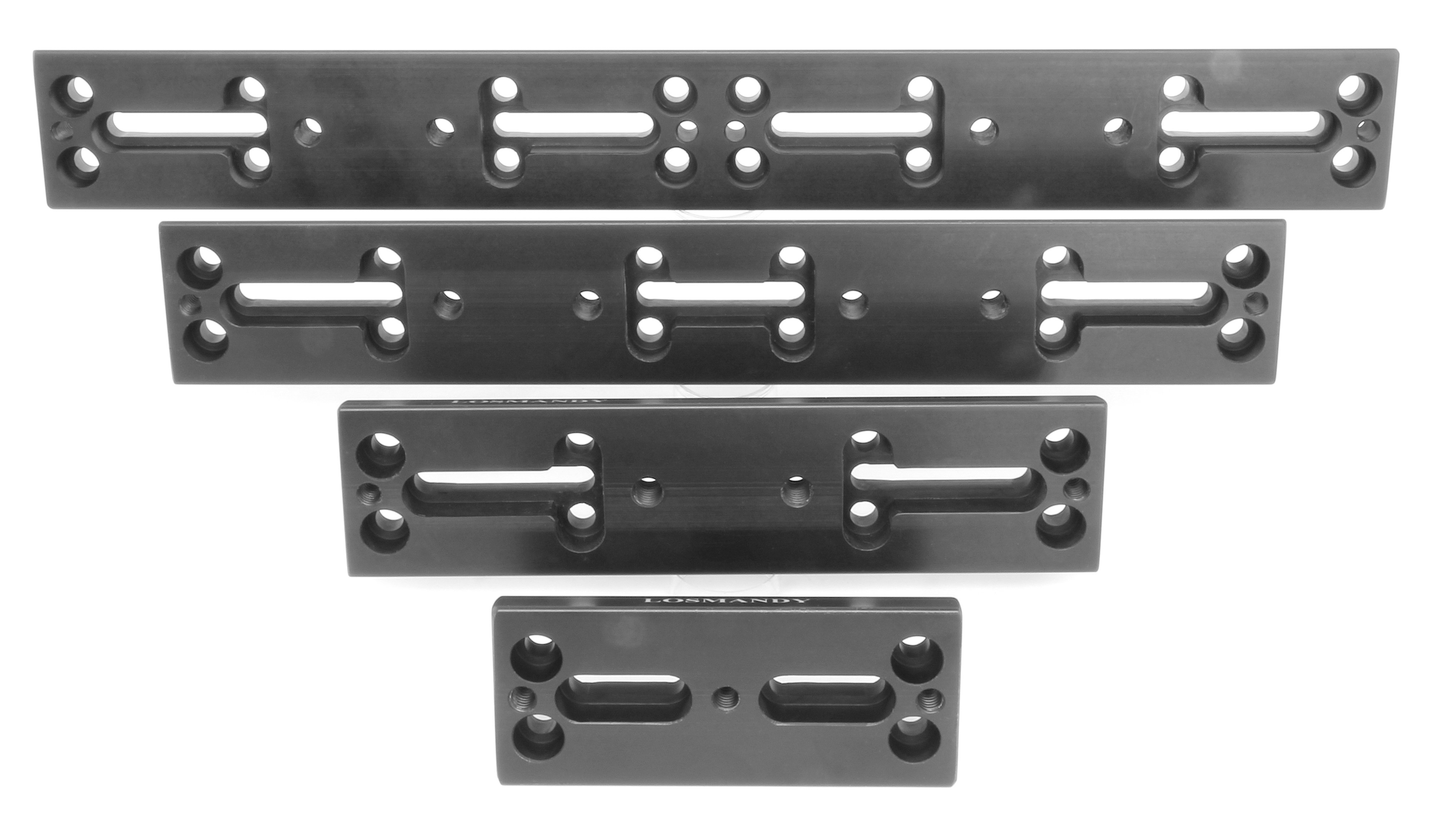

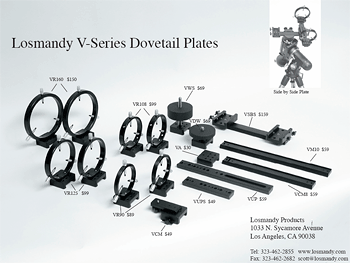

The new VUP Universal Plate Series now has additional length selection along with a new slot/hole pattern to allow easy adaption to your accessory.
PART NO. PRICE

VUP4 $25.00
VUP4 Telescope Vixen Style Universal Dovetail Plate
Click for larger image

Universal Vixen style dovetail plate 4 inches long. Wt. 0.5 lbs., Length 4.0", thickness 0.6"

Click here for diagram of VUP4 hole pattern (PDF)


VUP7 $49.00
VUP7 Telescope Vixen Style Universal Dovetail Plate
Click for larger image

Universal Vixen style dovetail plate 7 inches long. Wt. 0.7 lbs., Length 7.0", thickness 0.6"

Click here for diagram of VUP7 hole pattern (PDF)


VUP11 $54.00
VUP11 Telescope Vixen Style Universal Dovetail Plate
Click for larger image

Universal Vixen style dovetail plate 11 inches long. Wt. 1.0 lb., Length 11.0", thickness 0.6"

Click here for diagram of VUP11 hole pattern (PDF)


VUP14 $59.00
VUP14 Telescope Vixen Style Universal Dovetail Plate
Click for larger image

Universal Vixen style dovetail plate 14 inches long. Wt. 1.3 lbs., Length 14.0", thickness 0.6"

Click here for diagram of VUP14 hole pattern (PDF)





Hollywood General Machining, Inc.
1033 N. Sycamore Ave.
Los Angeles, CA 90038
(323)462-2855 FAX (323)462-2682
