TUBE AND RING MOUNTED V SERIES DOVETAIL PLATES & ACCESSORIES

V Series Dovetail Plates and Accessories The Dovetail Plates are the heart of the Losmandy Secondary System. 0.6" x 1.7" x length of the tube assembly. These dovetail plates and accessories are the same dimensions as the Vixen type dovetail. Vixen style dovetail bars may be mounted to the top and bottom of tube assembly for mounting of all V series accessories, making it possible to use both sides of tube for equipment. Mounts to all Celestron, Orion, Vixen and Meade systems. The dovetail plates, like all accessories in the Losmandy line, are machined for lightness and rigidity from aluminum stock, then black anodized for a tough, corrosion free surface.

Click the Links here, or scroll down to see all products.

PART NO. PRICE DESCRIPTION

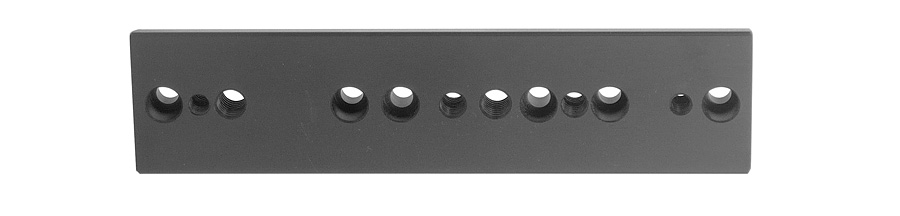

VUPS $49.00
VUPS Telescope Vixen Style Dovetail Plate
Click for larger image
  Short Universal Vixen style dovetail bar for use on Tele Vue, Parks, Takahashi, Questar, Vixen and Meade refractors.
Wt. 10 oz., Length 7", thickness 0.6"

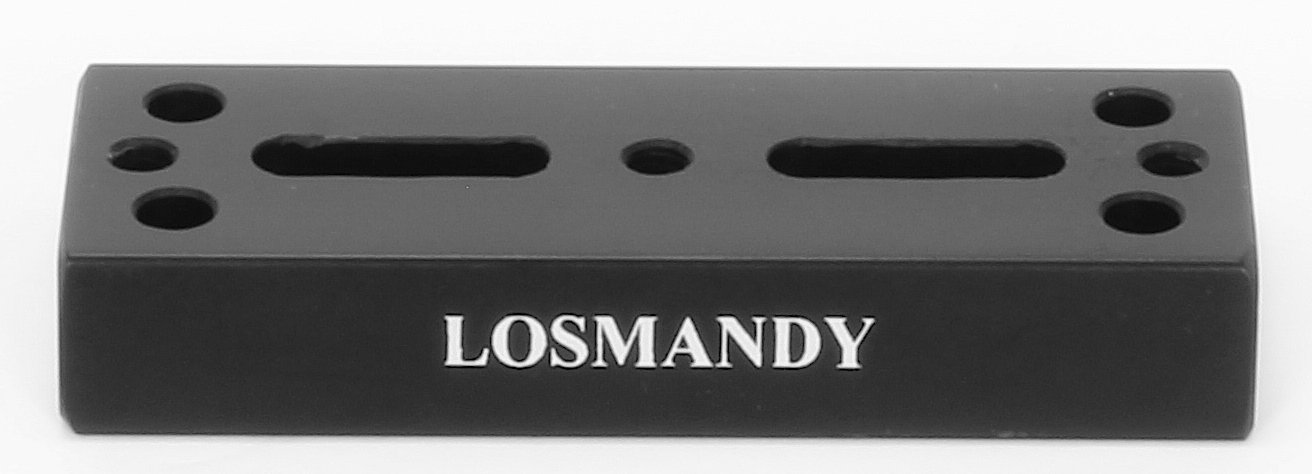

VUP4 $25.00
VUP4 Telescope Vixen Style Universal Dovetail Plate
Click for larger image


Universal Vixen style dovetail plate 4 inches long.
Wt. 0.5 lbs., Length 4.0", thickness 0.6"

Click here for diagram of hole pattern (PDF)

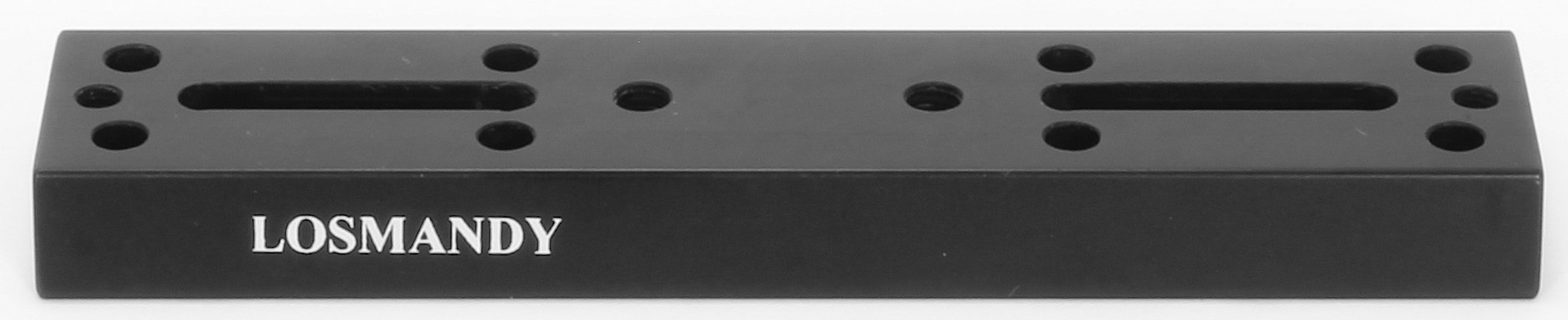

VUP7 $49.00
VUP7 Telescope Vixen Style Universal Dovetail Plate
Click for larger image


Universal Vixen style dovetail plate 7 inches long.
Wt. 0.7 lbs., Length 7.0", thickness 0.6"

Click here for diagram of hole pattern (PDF)

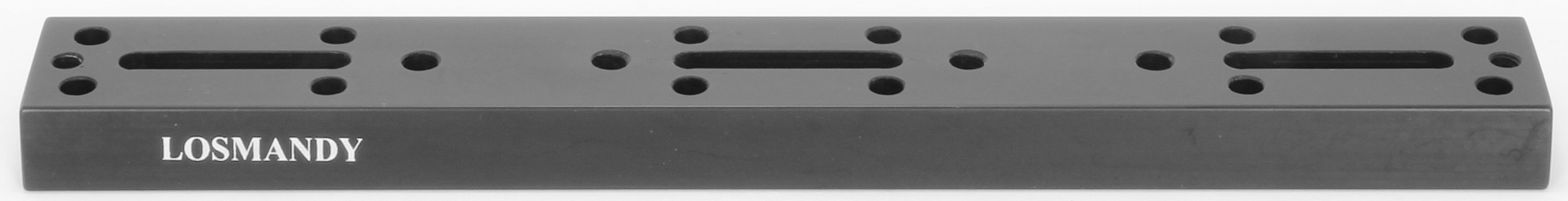

VUP11 $54.00
VUP11 Telescope Vixen Style Universal Dovetail Plate
Click for larger image


Universal Vixen style dovetail plate 11 inches long.
Wt. 1.0 lb., Length 11.0", thickness 0.6"

Click here for diagram of hole pattern (PDF)

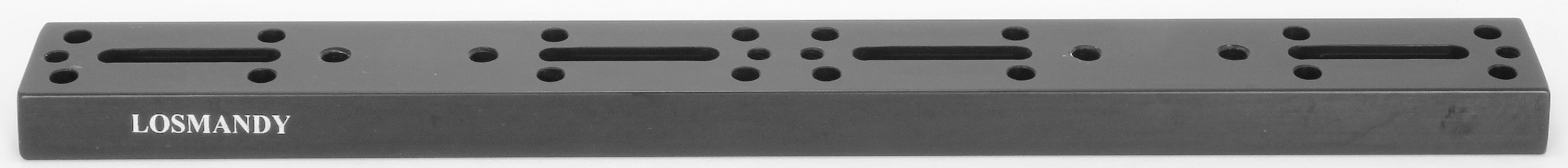

VUP14 $59.00
VUP14 Telescope Vixen Style Universal Dovetail Plate
Click for larger image


Universal Vixen style dovetail plate 14 inches long.
Wt. 1.3 lbs., Length 14.0", thickness 0.6"

Click here for diagram of hole pattern (PDF)

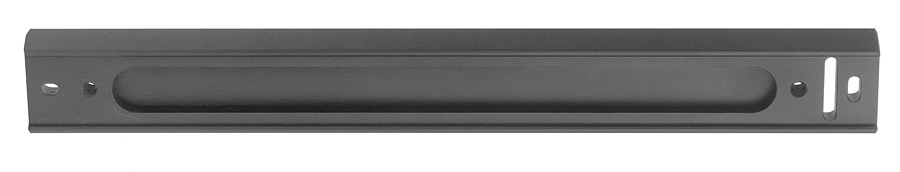

VSCT17 $65.00
VSCT17 Vixen Style Dovetail Plate
Click for larger image
  Meade Vixen style dovetail plate for 7" Mac., Meade 10", new Celestron 9.25" and Celestron 11"  (C11 requires part # VCB)
Bolts to existing holes.
Wt. 1.1 lbs. Length 17.25" HS 16.0/16.50, Ht. top of tube to top of dovetail plate .5" Thickness .6"

VSCT13 $65.00
VSCT13 Telescope Vixen Style Dovetail Plate   Celestron / Meade Vixen style dovetail plate for 8", bolts to existing holes.
Wt. 1 lbs. Length 13.5" HS 12.325/12.70, Ht. top of tube to top of dovetail plate .5" Thickness .6"

VCB8 $25.00
VCB8
Click for larger image
  For use with Celestron 8" if hole separation is 1.75" apart.

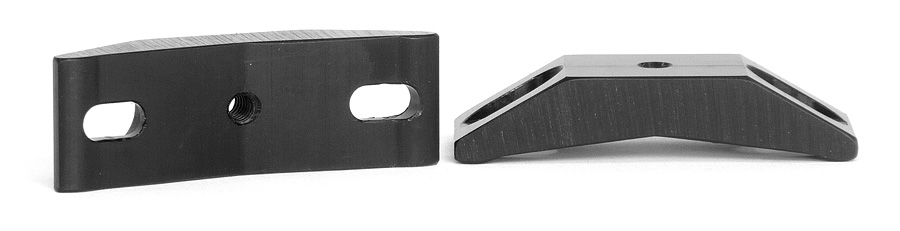

VCB11 $25.00
VCB11
Click for larger image
  For use with Celestron 11" if hole separation is 1.75" apart.

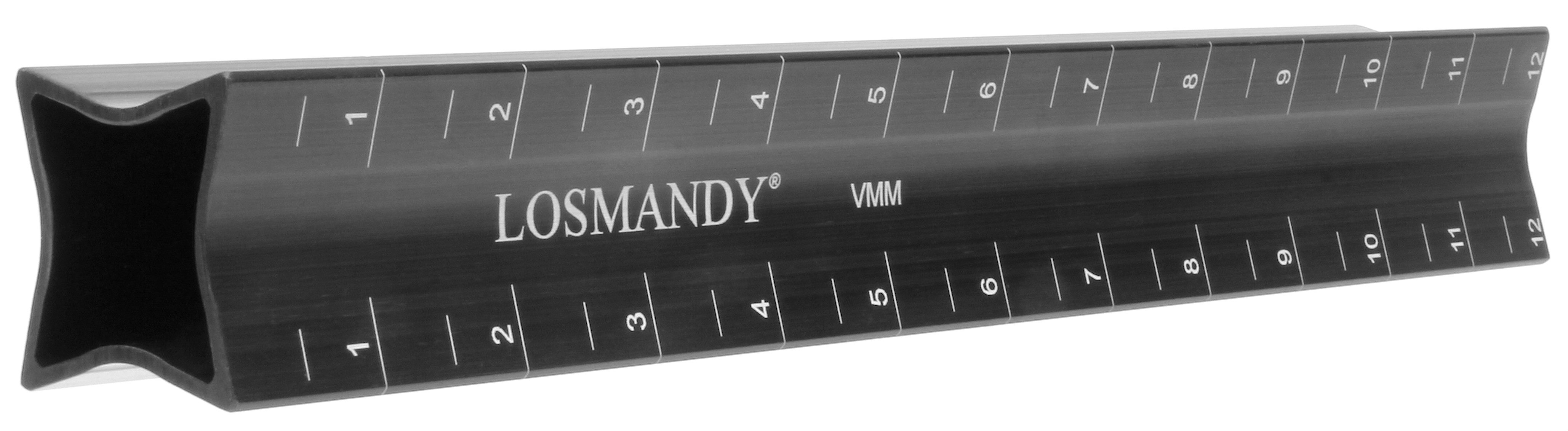

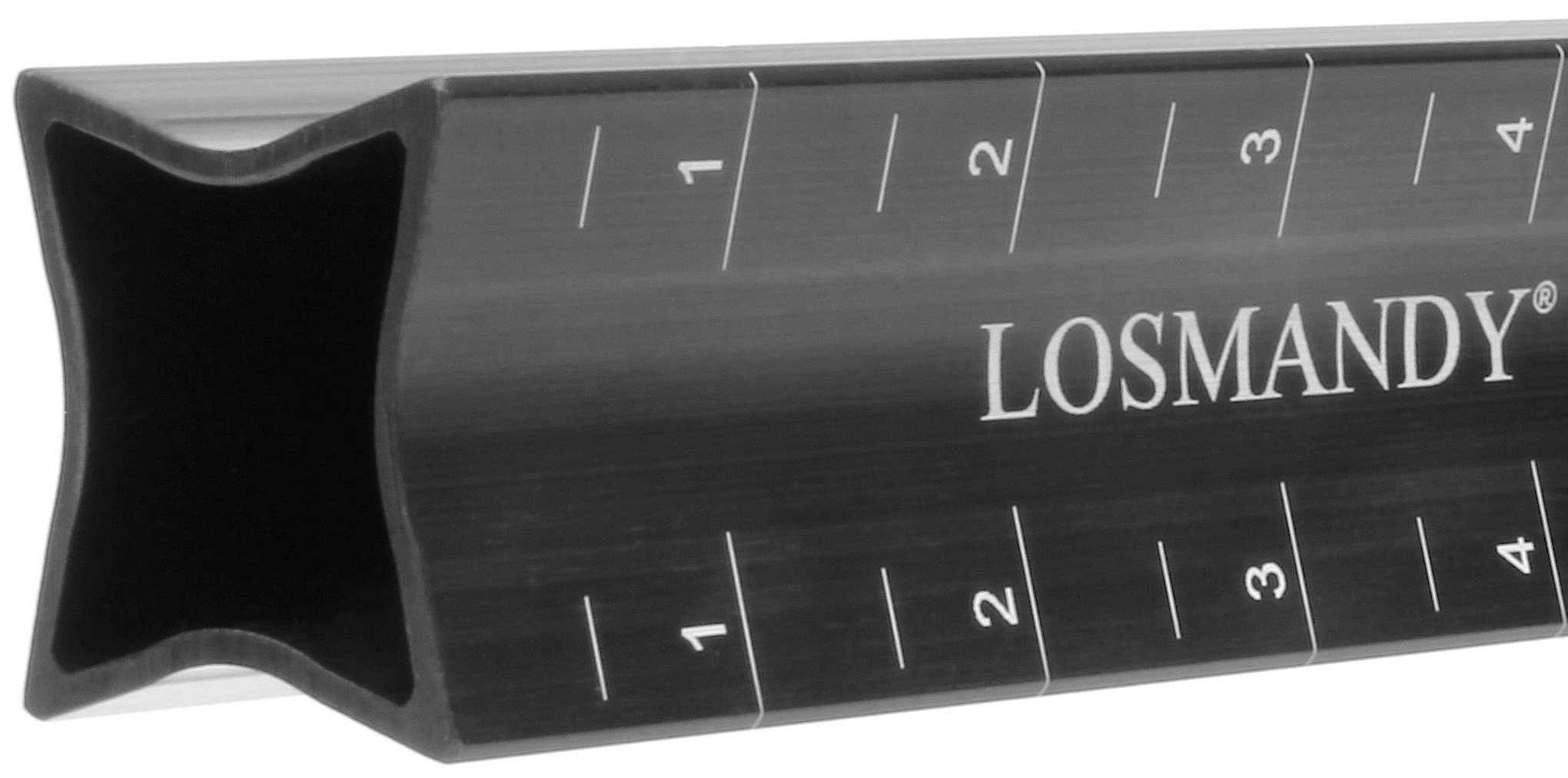

VMM $35.00
VMM Astronomy Vixen Style Dovetail Plate
Click for larger image
  Male to male Vixen style dovetail plate. For use of secondary equipment on equatorial mount and VSBS.
Wt. 7 OZ., Length 12", 1.625" x 1.625""

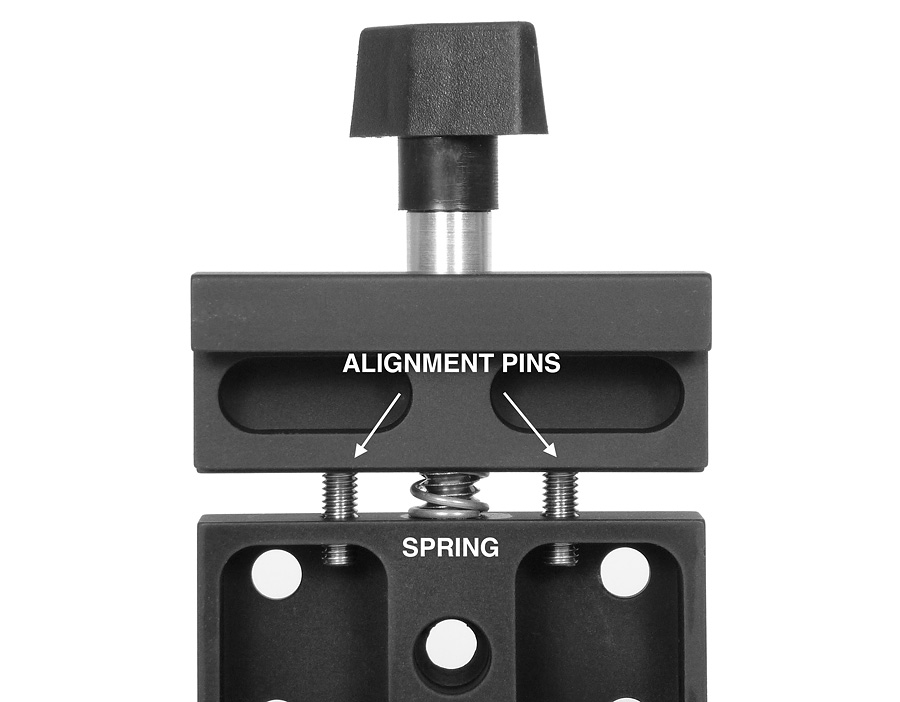

DVA $35.00
DVA
Click for Larger Image

DVA
Click for Larger Image
DVA

Click for Larger Image
Dovetail plate adapter. Works with both D and V series plates.
Mounts to existing rings or telescopes. For use with dovetail plate. Once mounted, no tools are needed to interchange equipment.
Wt. 7.25 oz.,

Ht. from top of dovetail plate to top of DVA:
D plates=.80"
V plates=.55"

DVCM $59.00
DVCM Telescope Vixen Style Camera Mount
Click for larger image
DVCM
Click for larger image
Works with both D and V series plates.
One axis, 360 deg. camera rotation, dovetail mounted, no tools needed. Wt. 10.75 oz.
Ht. from top of dovetail plate to top of camera mount:
D plates=1.80"
V plates=1.55"

DVCM 2 $150.00
DVCM2 Losmandy Vixen Style Astronomical Telescope Dovetail Camera Mounting Accessory
Click for larger image
DVCM 2
Click for larger image
Works with both D and V series plates.
Three axis, 360 deg. camera rotation, +/- 45 deg. camera tilt, 360 deg. unit rotation, dovetail mounted, no tools needed. Wt. 2.7 lbs.
Ht. from top of dovetail plate to top of camera mount:
D plates=3.95"
V plates=3.65"

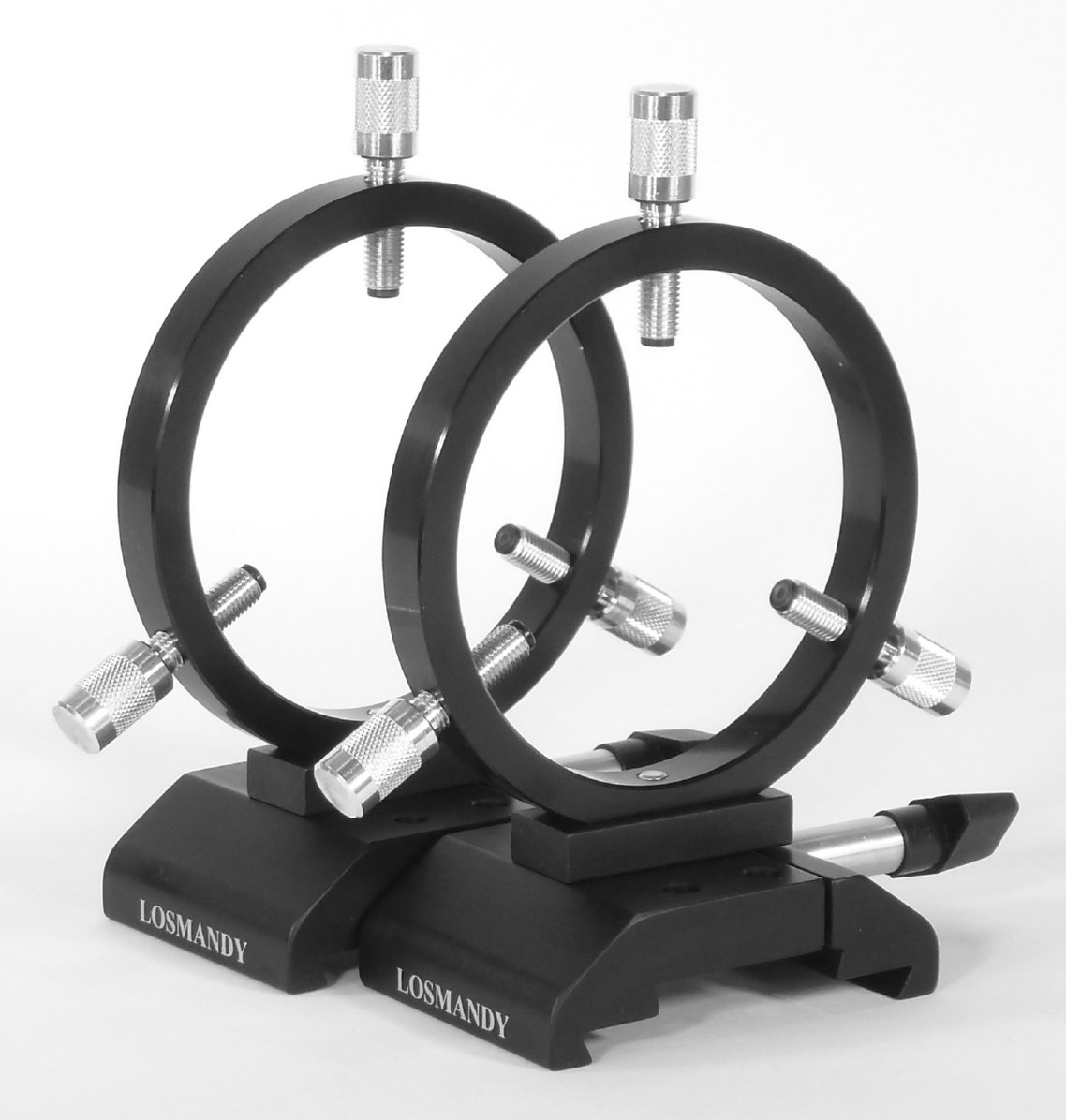

DVR 90 $95.00
Telescope Guide Scope Rings DVR90 Losmandy Style Rings and Vixen Style Rings
Click for Larger Image
  DVR90 Guide Scope Rings. Works with both Losmandy D Style and V Series Vixen Style plates.
90mm (3.5") I.D. rings with three point adjustment, Delrin tips.
Wt. 25.5 oz. per set, 2 rings per set, dovetail mounted, no tools needed. I.D. size from 2.48" TO 3.78"
Ht. from top of dovetail plate to center of rings:
D plates=3.26"
V plates=3.01"

DVR 108 $95.00
Telescope Guide Scope Rings DVR108 Losmandy Style Rings and Vixen Style Rings
Click for Larger Image
  DVR108 Guide Scope Rings. Works with both Losmandy D Style and V Series Vixen Style plates.
108mm (4.25") I.D. rings with three point adjustment, Delrin tips.
Wt.  29 oz. per set, 2 rings per set, dovetail mounted, no tools needed. I.D. size from 2.96" to 4.32"
Ht. from top of dovetail plate to center of rings:
D plates=3.437"
V plates=3.187"

DVR 125 $95.00
Telescope Guidescope Rings DVR125 Losmandy Style Rings and Vixen Style Rings
Click for Larger Image
  DVR125 Guidescope Rings. Works with both Losmandy D Style and V Series Vixen Style plates.
125mm (5.0") I.D. rings with three point adjustment, Delrin tips.
Wt.  per set, 31.5 oz. 2 rings per set, dovetail mounted, no tools needed. I.D. size from 3.66" to 5.02"
Ht. from top of dovetail plate to center of rings:
D plates=3.837"
V plates=3.587"

DVR 160 $125.00
Telescope Guide Scope Rings DVR160 Losmandy Style Rings and Vixen Style Rings
Click for Larger Image
  DVR160 Guide Scope Rings. Works with both Losmandy D Style and V Series Vixen Style plates.
160mm (6.3") I.D. rings with three point adjustment,  Delrin tips.
Wt. 41.5 oz. per set, 2 rings per set, dovetail mounted, no tools needed. I.D. size from 5.3" to 6.3"
Ht. from top of dovetail plate to center of rings:
D plates=4.652"
V plates=4.402"

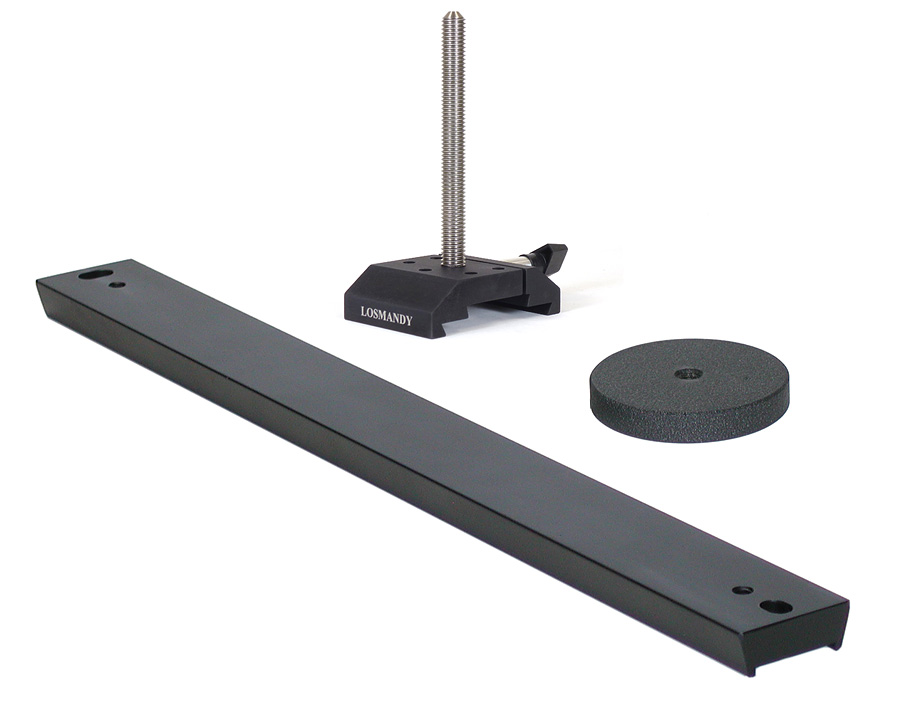

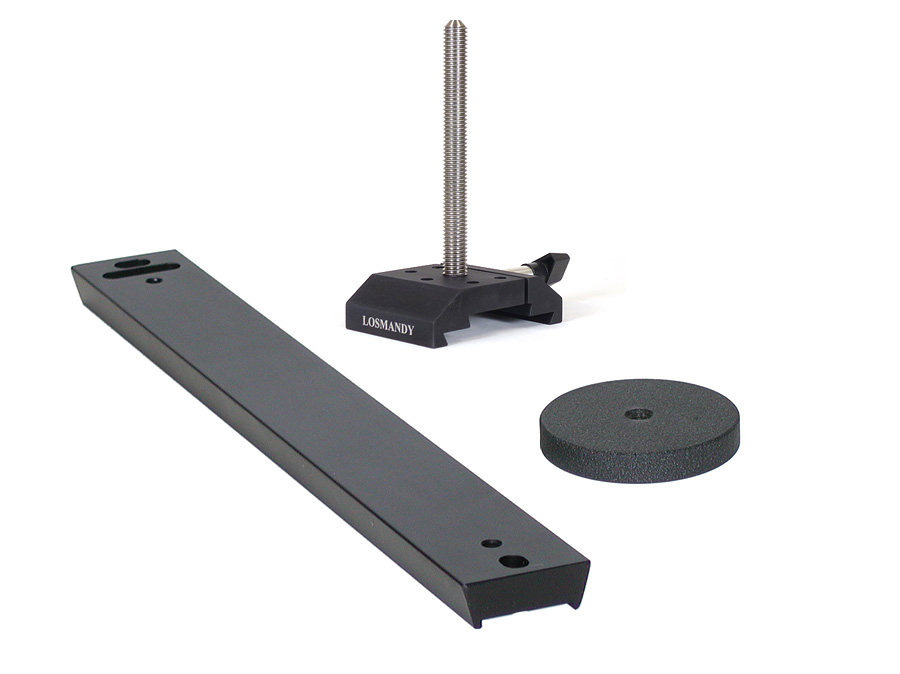

DVWS $59.00
DVWS Telescope Weight Balance Dovetail Adapter Losmandy Style and Vixen Style
Click for Larger Image
  Works with both D and V series plates.
Dovetail adapter with a 5 inch long threaded stainless steel shaft and 2.5 lb weight. Mounts to dovetail plate, is used for the balancing of a fork mounted telescope. Wt. 3.2 lbs. total.

DVDWS $59.00
DVDWS Telescope Weight Balance Dovetail Adapter Losmandy Style and Vixen Style
Click for Larger Image
  Works with both D and V series plates.
Dovetail adapter with a 2 inch long threaded stainless steel shaft and 2.5 lb weight. Mounts to dovetail plate for the balancing of the DEC. axis on the G-11 & HGM 200 mounts. Wt. 3.2 lbs. total.

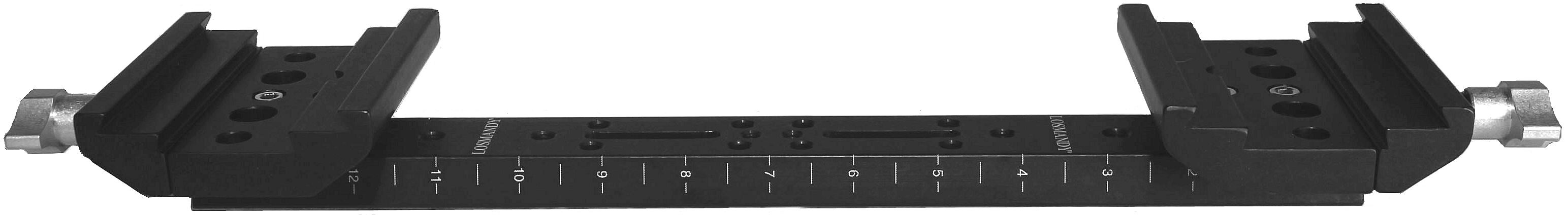

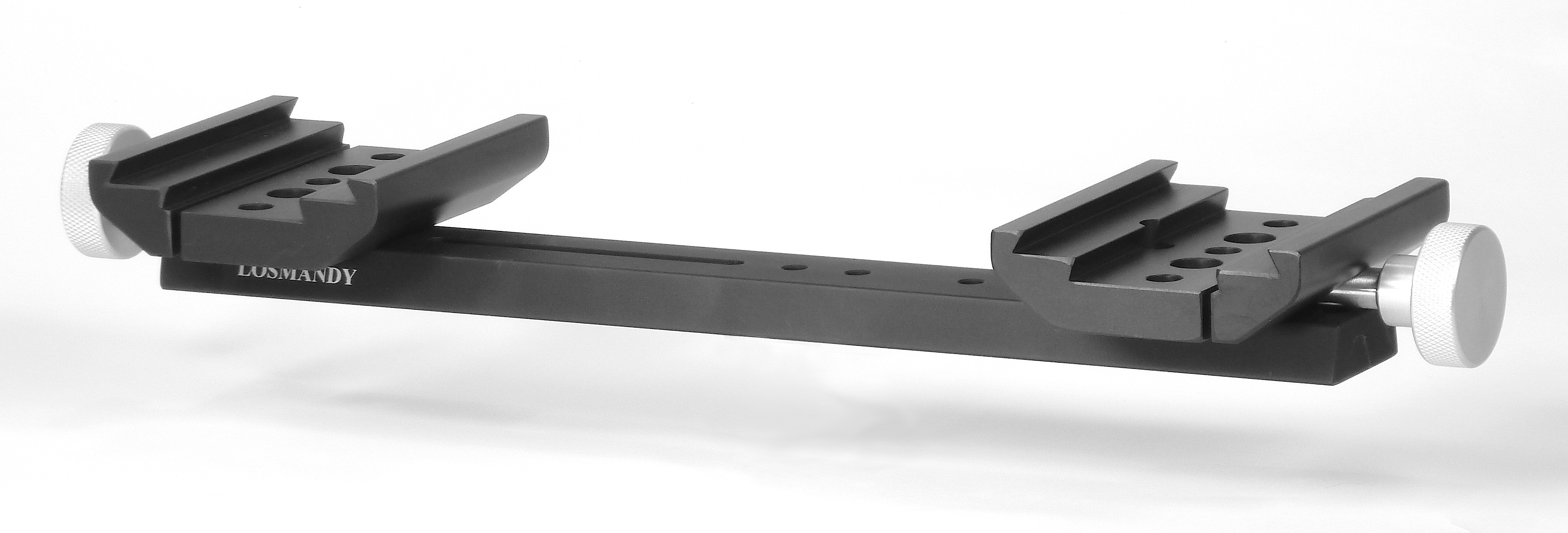

VSBS $169.00
VSBS Vixen Style Side by Side Dovetail Plate
Click for larger image
  Side by side Vixen style plate. Incorporates two saddle plates that can mount the Vixen Style or the Losmandy Style plates, mounted parallel to each other. Used for mounting two optical systems side by side, by rotating your equatorial mount's saddle 90 degrees.
Wt. 2.75 lbs., Total thickness 1.6", Saddle plate separation 9.25", center to center.

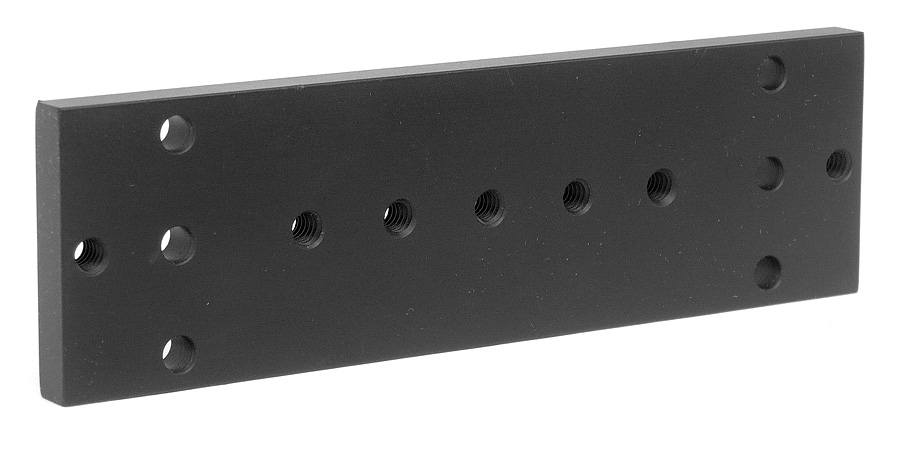

APP $30.00
APP
Click for larger image
  Adapter VSP to a Vixen Polaris Mount. Saddle plate needs to be ordered separately.
Wt. 12 oz. Size of plate .5" x 2.0" x 6.75".
