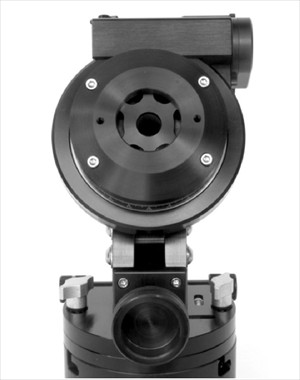

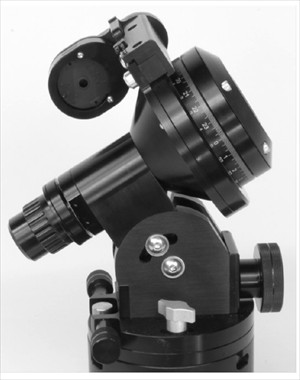

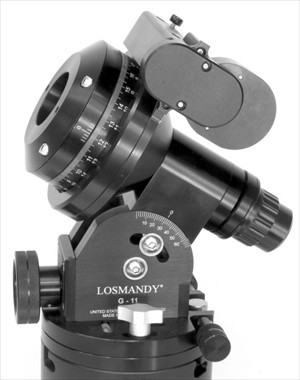

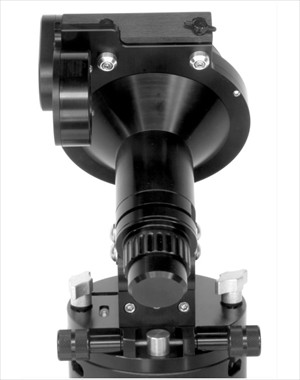

G11RA-AXIS
EQUATORIAL MOUNT RA AXIS
50 lb. ASTROPHOTOGRAPHY WEIGHT CAPACITY WHEN USED WITH GM8 DEC (not included)
$1045.00





  If you currently have a GM8 with Gemini you can now easily and inexpensively increase the payload capacity of your mount without the need to purchase a full new mount. You only need to purchase the G11RA-AXIS to use with the DEC portion of your existing GM8.


Click for Larger ImageEquatorial Head GOTO Telescope Mount



SPECIFICATION: R.A. AXIS

  • New Tucked in Motor Design
  • All machined aluminum and stainless steel, black anodized.
  • All stainless steel hardware.
  • One 3.750” diameter needle thrust bearing.
  • One 2.000” diameter needle thrust bearing.
  • Two 1.500” diameter needle bearings.
  • 5.625” diameter, 7075 aluminum worm gear, 360 tooth.
  • Dual supported, ball bearing housed ground High Precision Brass Worm.
  • One Piece Worm Block Design
  • Spring Loaded Worm
  • Variable slip clutch.
  • 1.250” diameter stainless steel shaft.

* This all new design of Tucked in Motors and One Piece Worm Blocks requires the use of our newly redesigned Servo Motors. The redesign configures the DIN Connector in a different location on the Motor. The new model product number is SVM-HTS. You can purchase the SVM-HTS for $225 or if you have an existing SVM-HT you may send this to our shop to be modified for the cost of $100 plus return shipping


PRICING DETAILS    -    Prices in US Dollars
G11RA-AXIS G11 RA Axis $1045.00
