MADE IN THE USA



GM8
EQUATORIAL MOUNT
30 lb. INSTRUMENT CAPACITY
60 lb. TOTAL CAPACITY
Click HERE for Instruction
Manual and Parts Drawing


GM8  SLT:
GM8  GLT:
GM8  S:
GM8  G:




$1,295.00
$2,295.00
$1,495.00
$2,495.00

Click HERE for Pricing details

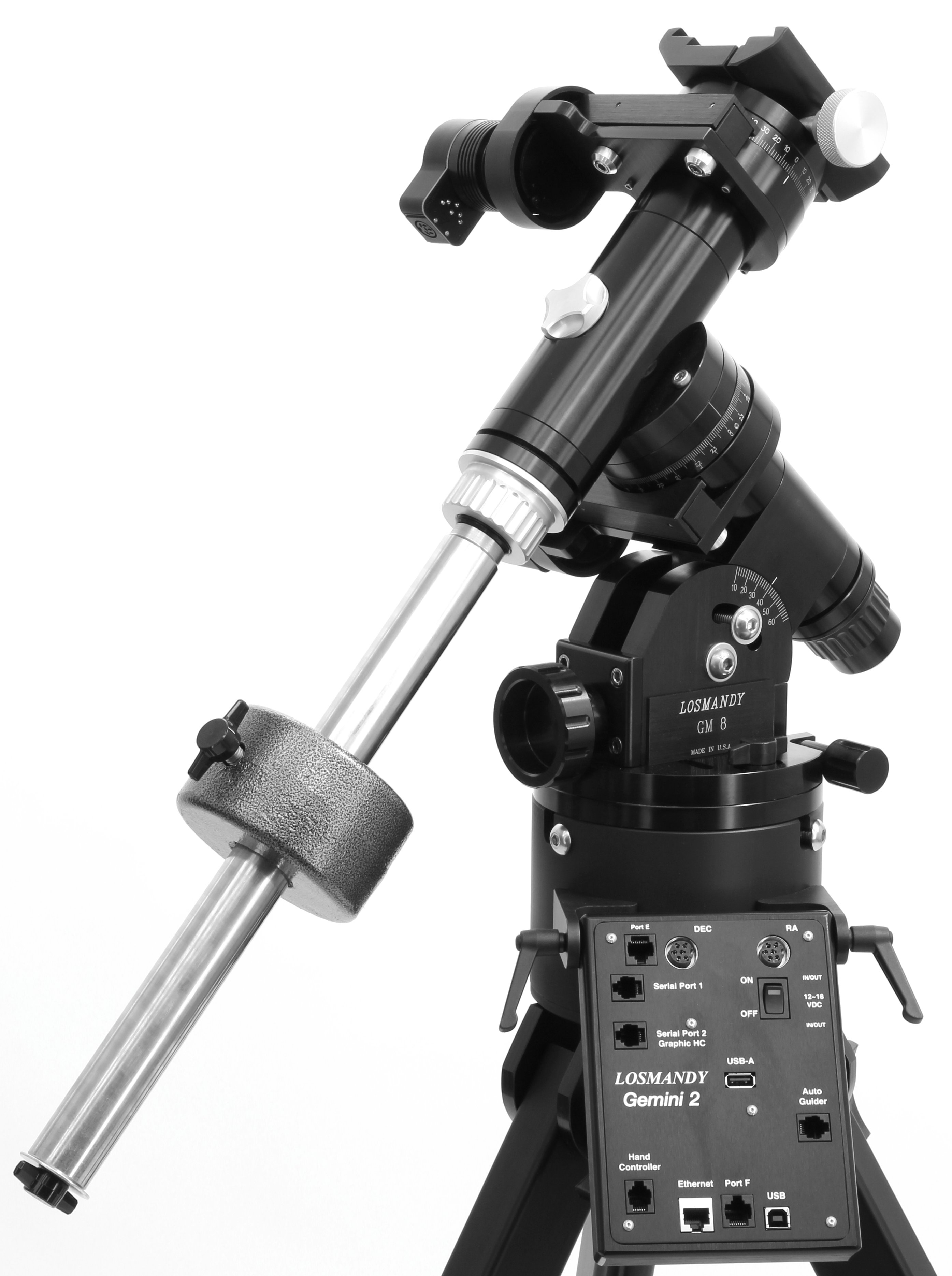

Equatorial Telescope Mount




Click for Larger ImageEquatorial Head GOTO Telescope Mount



SPECIFICATION: R.A. / DEC. AXIS

  • All machined aluminum and stainless steel, black anodized.
  • All stainless steel hardware.
  • One 2.100” diameter needle thrust bearing.
  • One 2.000” diameter needle thrust bearing.
  • Two 1.500” diameter needle bearings.
  • 2.812” diameter, 7075 aluminum worm gear, 180 tooth.
  • Dual supported, ball bearing housed ground High Precision Brass Worm.
  • Variable slip clutch, both axes. One knob per axis design.
  • Porter Slip Ring Design
  • 1.250” diameter aluminum shafts.
  • Through the axis polar scope mounting, works in Northern and Southern Hemisphere. Polar scope optional.
  • Instrument Weight Capacity 30 LBS
  • Equatorial head weight 21 lbs.

Click for Larger ImageG11 Equatorial Head Telescope Mount




Click for Larger ImageGM8 Equatorial Telescope Mount Elevation Adjustment





Fully locking, unique tangent arm design altitude adjustment, 6-68 degrees, large knob for easy alignment.

Laser engraved latitude scale in 2 degree increments.




Click for Larger ImageG11 Equatorial Telescope Mount Elevation Adjustment
----Internal View----


Click for Larger ImageGM8 Equatorial Telescope Mount Azimuth Adjustment





Single knob azimuth control, bi-directional +/- 8.5 degree.




Click for Larger ImageG11 Equatorial Telescope Mount Setting Circle





3.500” diameter laser engraved setting circles, 6 minute R.A. / 2 degrees DEC.

 R.A. circle engraved for Northern and Southern Hemisphere.




Click for Larger ImageGM8 Saddle Plate for Losmandy and Vixen





Dovetail saddle-plate fits both "D" Losmandy Style Dovetail or Vixen Style Dovetail. Allows for the interchanging of any tube assembly-reduces need for DEC. weights.




Click for Larger ImageGM8 Saddle Plate Detail




Click for Larger ImageGM8 Equatorial Telescope Mount Brass Worm





2.812” diameter, 7075 aluminum worm gear, 180 tooth.

Dual supported, ball bearing housed ground High Precision Brass Worm.

*(image shown with worm cover plate removed)


Click for Larger ImageG11 Equatorial Telescope Mount Weight Bar





Removable stainless steel 1-1/4 inch diameter weight shaft w/safety knob.

7 lb counterweight.

11 lb and 21 lb extra counterweights available.



Click for Larger ImageTelescope Tripod Folding





FOLDING LW TRIPOD

All machined aluminum, black anodized

Tripod height, adjustable from 27” - 43”

Folding leg design for easy transporting.

Tripod weight 15 lbs.




Click for Larger ImageLight Weight Folding Telescope Tripod




DRIVE ELECTRONIC OPTIONS - (S) DIGITAL OR (G) GEMINI GOTO

DUAL-AXIS DIGITAL ELECTRONICS (S)

  • Diamond push button pattern.
  • R.A. and DEC. reversing switches.
  • 160 oz/in stepper motor, 1.0 arc sec. step.
  • Three guiding rates; 30%, 50% and 2x sidereal rate.
  • Three setting rates; 4x, 8x, 16x sidereal rate.
  • Quartz tracking rates: sidereal, solar, lunar, king.
  • Periodic Error Correction (PEC).
  • Programmable DEC. Backlash Compensation (TVC).
  • Control panel dimmer.
  • Accepts auto-guider systems.
  • Northern and Southern Hemisphere operation.
  • 12 volt DC - 500ma power use.
  • Tiltable control panel for easy access.
  • Small hand control box for comfortable use.

GEMINI 2 GOTO ELECTRONICS (G)

  • Full Color Graphic Touch Screen clearly displays all functions.
  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and tactile membrane on the rear.
  • Periodic Error Correction (PEC).
  • Programmable DEC. Backlash Compensation (TVC).
  • Control panel dimmer, Day and Night Modes.
  • Accepts auto-guider systems.
  • Northern and Southern Hemisphere operation.
  • Tiltable control panel for easy access.
  • Stand Alone System. No PC required
  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or Serial Port
  • DC Servos for imporved accuracy with higher torque than steppers
  • Non-Volatile Memory and Real-Time Clock
  • English, German, French & Spanish displays
  • Over 40,000 objects
  • USB ports; Virtual COM to PC, ASCOM or planetarium program.
  • Firmware upgrade via internet
  • Auto Guide Port (TTL)
  • Dual 12-18V DC input/output (3.0A)


PRICING DETAILS    -    Prices in US Dollars
GM8  SLT   Equatorial Head, Digital Drive, Weight Shaft and 7 lb. weight 1,295.00
GM8  GLT Equatorial Head, Gemini 2 Goto, Weight Shaft and 7 lb. weight. 2,295.00
GM8  S Equatorial Head, Digital Drive, Weight Shaft, Folding LW Tripod and 7 lb. weight. 1,495.00
GM8  G Equatorial Head, Gemini 2 Goto, Weight Shaft, Folding LW Tripod and 7 lb. weight. 2,495.00
