Gemini 2 Goto Servo System

New!  Gemini 2
Equatorial Positioning System

The latest Gemini has been completely redesigned with a more powerful CPU, more memory and an interactive color touch screen for versatility and ease of use.


  • Full Color Graphic Touch Screen clearly displays all functions

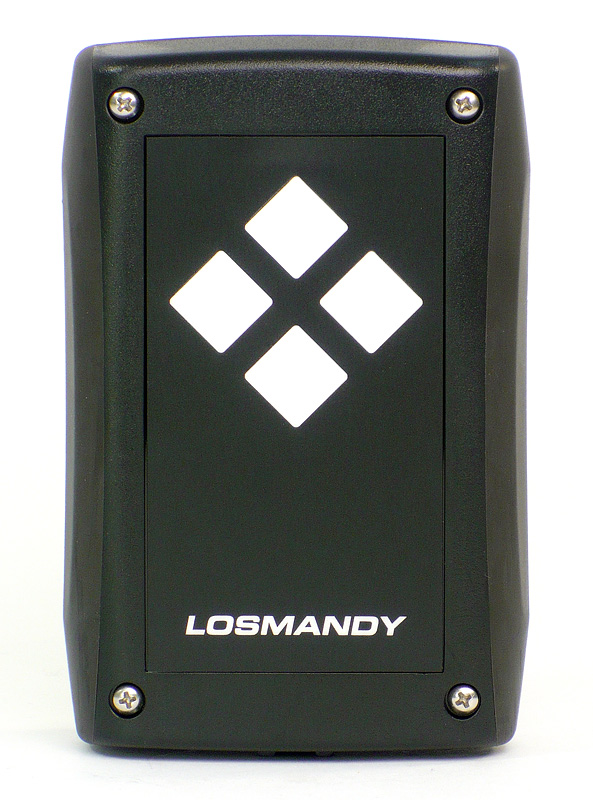

  • Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and a tactile membrane on the rear    (Click for REAR VIEW)
  • Support for the original four-button controller
  • For Losmandy GM8, G-11 & Titan mounts
  • Custom mount support using the Programmable Gear Rate function
  • 8°/sec Slew Rate (GM8)
  • 0.5 arcsec positional accuracy
  • DC Servos for improved accuracy with higher torque than stepper motors
  • GPS-compatible with optional receiver
  • Stand-alone system. No PC required!
  • Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or serial port
  • Non-Volatile Memory and Real-Time Clock
  • English, French & German displays
  • Over 40,000 objects
  • Two USB ports; Virtual COM to PC, ASCOM or planetarium program
  • Port F - multi-function serial; A/D I/O
  • Firmware upgrade via internet
  • PEC correction
  • Auto-Guide port (TTL)
  • Dual 12~18V DC input/output (3.0A)
Specifications subject to change
  Gemini 2 System
